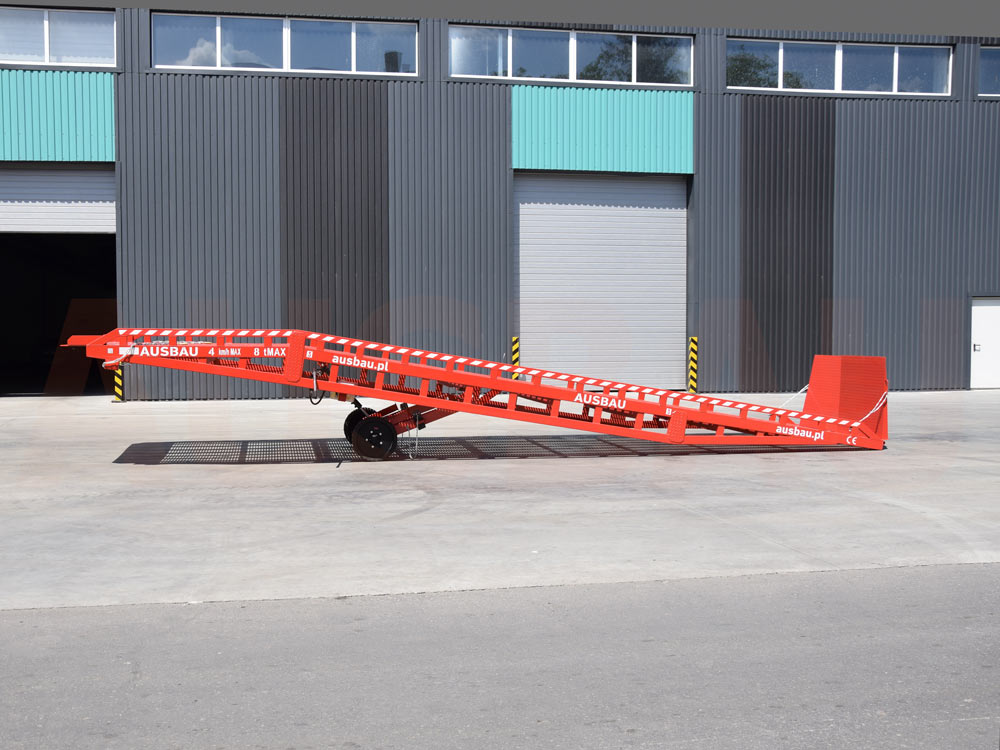

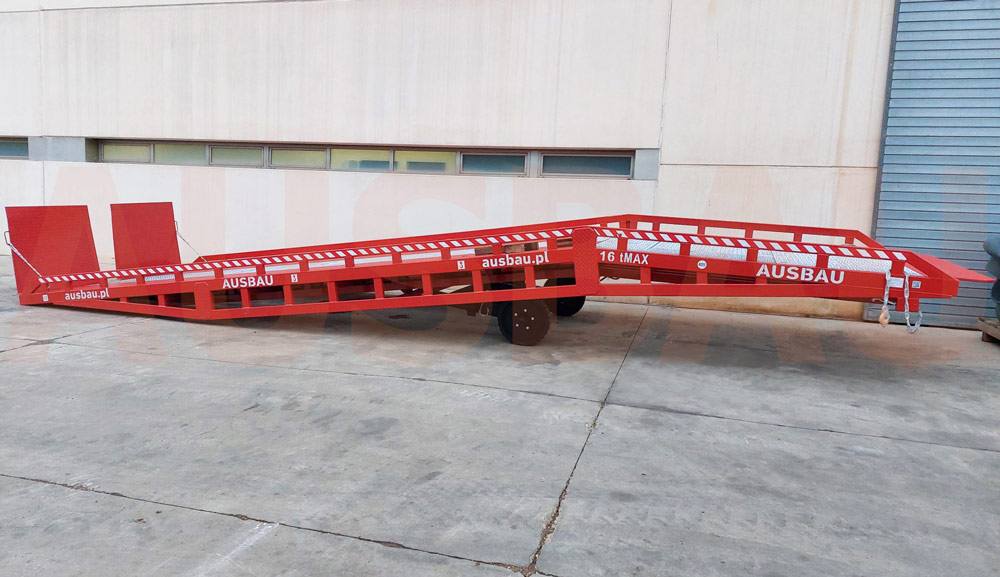

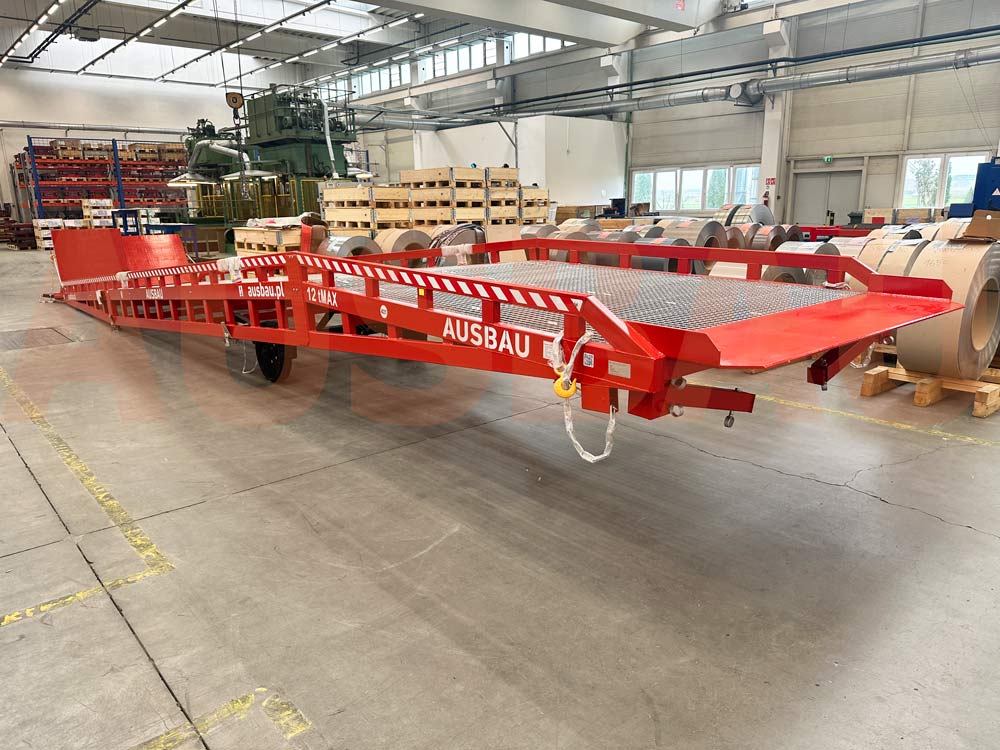

Mobile ramp

The mobile loading ramp is a metal inclined structure that lets the forklift get inside the truck body from the ground level. Such loading ramp is easy and convenient to operate; it significantly optimizes logistics processes and increases labour efficiency.

Technical features of the loading ramp AUSBAU:

Load of ramp, kg	6000 / 8000 / 10000 / 12000
Total length of the ramp, mm	9000 / 9500 / 10500 / 11200 / 12000 / 13000
The total width of the ramp, mm	2130
Width of riding surface, mm	2000
Length of sloping part, mm	8000 / 8500 / 9200 / 9900
Loading stage length, mm	300
Min. working height, mm	900
Max. working height, mm	1550 / 1750
Height of the handrailings, mm	180
Number of folding races, pcs	2
Number of wheels, pcs	2
Wheels	Solid
Material	S235
Carriageway surface	Grating
Components	Rubber wheel chocks – 2 pcs; Tow pole – 1 pc; Set of chains on the ramp – 7 pcs; Manual hydraulic pump with handle – 1 pc.
Warranty	18 months

Sizes

#	Model	Load, kg	Ramp size, mm
#	Model	Load, kg	N	H	E	C	NH	F	T	A	Z
P1	PRO6	6000	8000	2500	1000	300	10500	2000	2220	900	1650
P2	PRO8	8000	8000	2500	1000	300	10500	2000	2260	900	1650
P3	PRO10	10000	8500	2700	1000	300	11200	2000	2300	900	1650
P4	PRO12	12000	8500	2700	1000	300	11200	2000	2340	900	1650
S1	SRT6	6000	8000	1000	1000	300	9000	2000	2220	900	1550
S2	SRT8	8000	8000	1000	1000	300	9000	2000	2260	900	1550
S3	SRT10	10000	8500	1000	1000	300	9500	2000	2300	900	1570
S4	SRT12	12000	8500	1000	1000	300	9500	2000	2340	900	1570
L1	LNG6	6000	9200	2800	1000	300	12000	2000	2220	900	1700
L2	LNG8	8000	9200	2800	1000	300	12000	2000	2260	900	1700
L3	LNG10	10000	9900	3100	1000	300	13000	2000	2300	900	1750
L4	LNG12	12000	9900	3100	1000	300	13000	2000	2340	900	1750

Production time: 15 – 45 calendar days from order to delivery.

Attention!!!: We try to produce the most popular models of mobile ramps in the warehouse or at the production stage, so the delivery time can be reduced to 2-10 days (depending on the stage of implementation of the ramps in the warehouse and availability in the warehouse).

Warranty: 1.5 years.

The main advantages of the mobile ramp are:

The main advantage of the mobile ramp over hydraulic dock levellers, loading bridges and fixed ramps is that it features a wheelbase and can be transported to the unloading point across the warehouse. Moreover, the height of the yard ramp is adjusted with the help of built-in hydraulics.

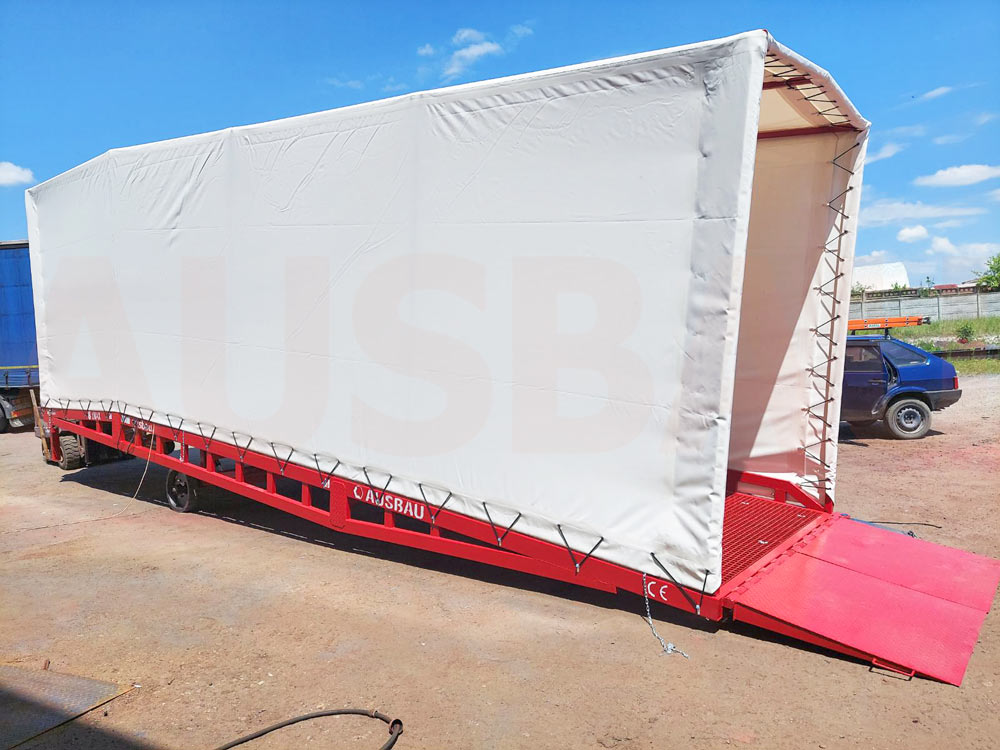

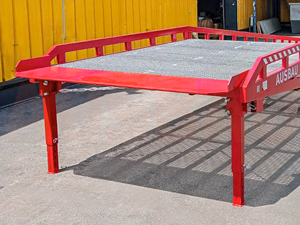

We offer a wide range of models of AUSBAU loading ramps. Our experts will help you choose the required model of the mobile yard ramp depending on its characteristics and the required load capacity. Due to a wide range of additional options such as supporting legs, railings, anti-slippery and Zinc coated gratings, tents, etc., you can adapt your equipment to the operating conditions to the greatest possible extent. If the customer needs a non-standard mobile ramp, we are always ready to manufacture customized mobile dock ramps.

Advantages of AUSBAU mobile loading ramps

1) The mobile ramp height adjustment is carried out with the help of reliable hydraulics i.e. external power supply is not required.

2) The chain reliably connects the ramp to all kinds of trucks.

3) The wheel chock (brake) fixes the ramp while the loader is working on it. It comes complete with a ramp.

4) The grid surface of the ramp provides excellent wheel grip, even in severe frosts. Water, dirt, snow and other substances freely seep through the grid holes, so nothing impedes the loader movement.

5) The forklift can transport the mobile ramp both forward and backward as it features a special attachment for a rigid coupling even in a small warehouse area.

6) The entry bridge (the point where the ramp and the truck contact) is made of an strengthened plate which is up to 20 mm thick. It ensures outstanding reliability the intensive use requires.
