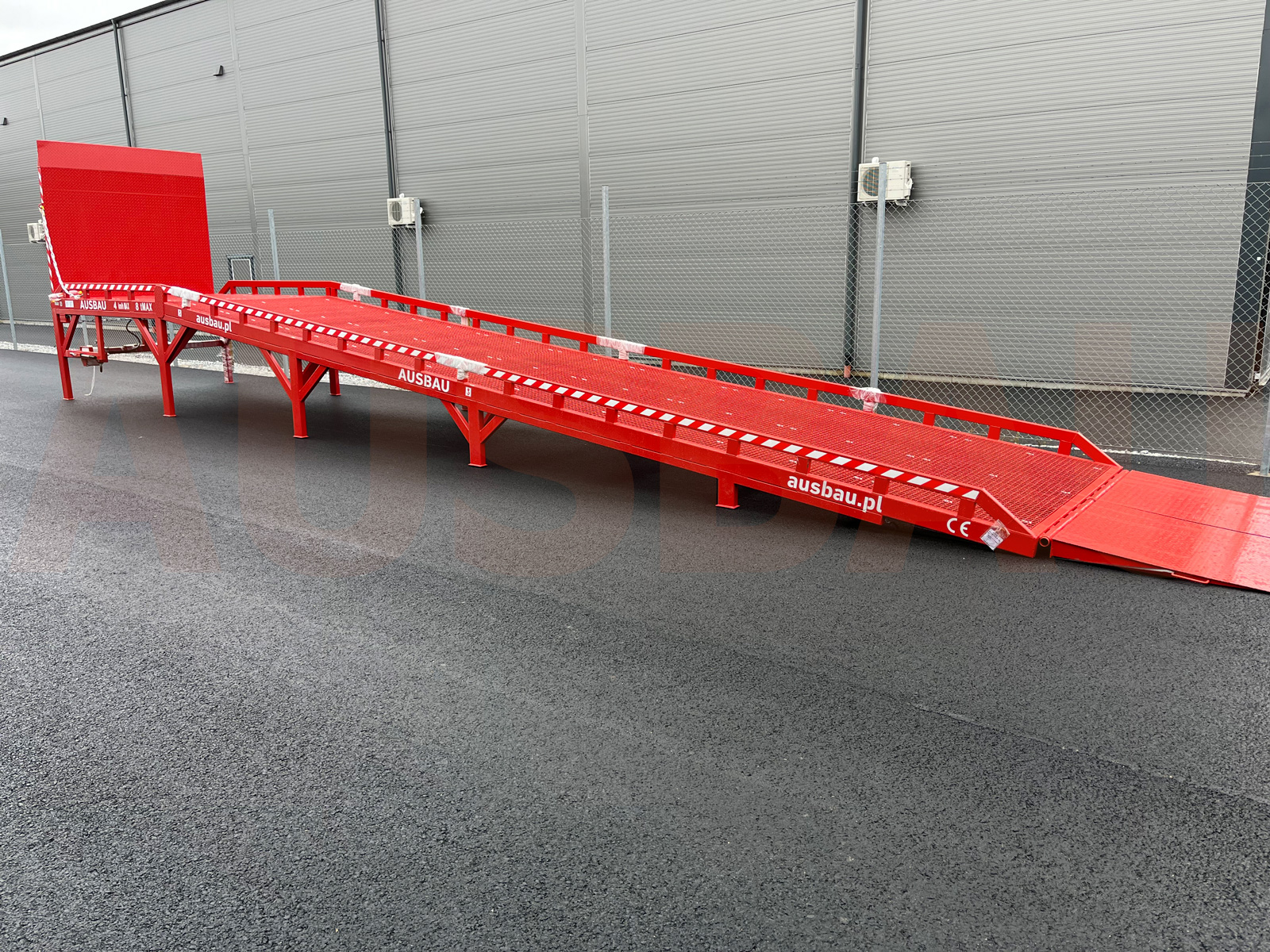

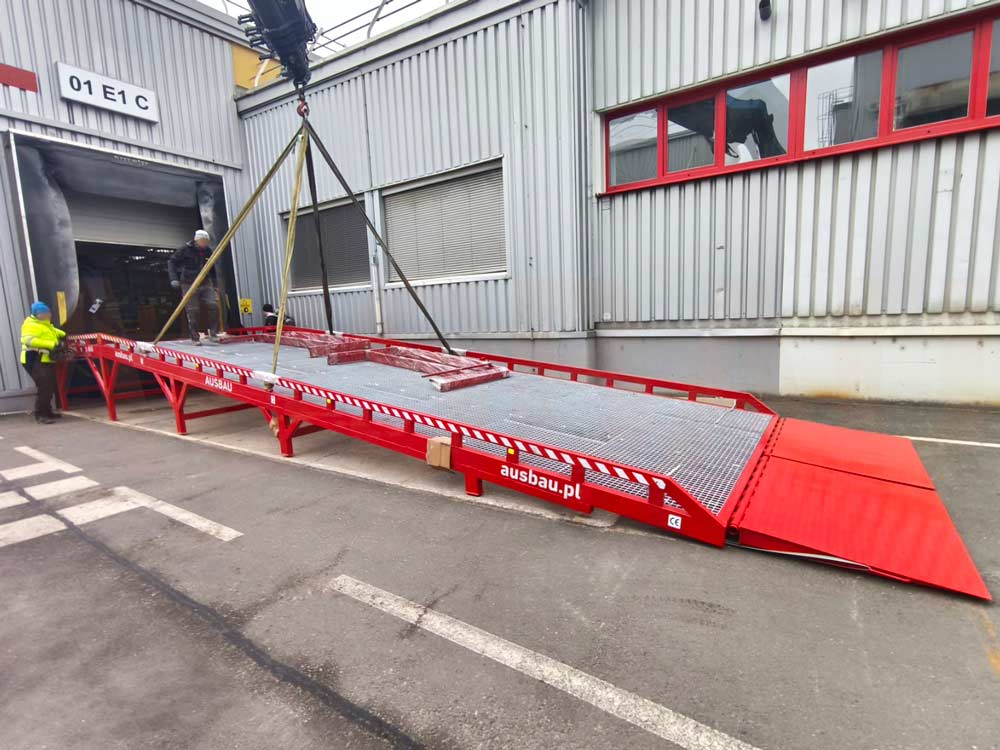

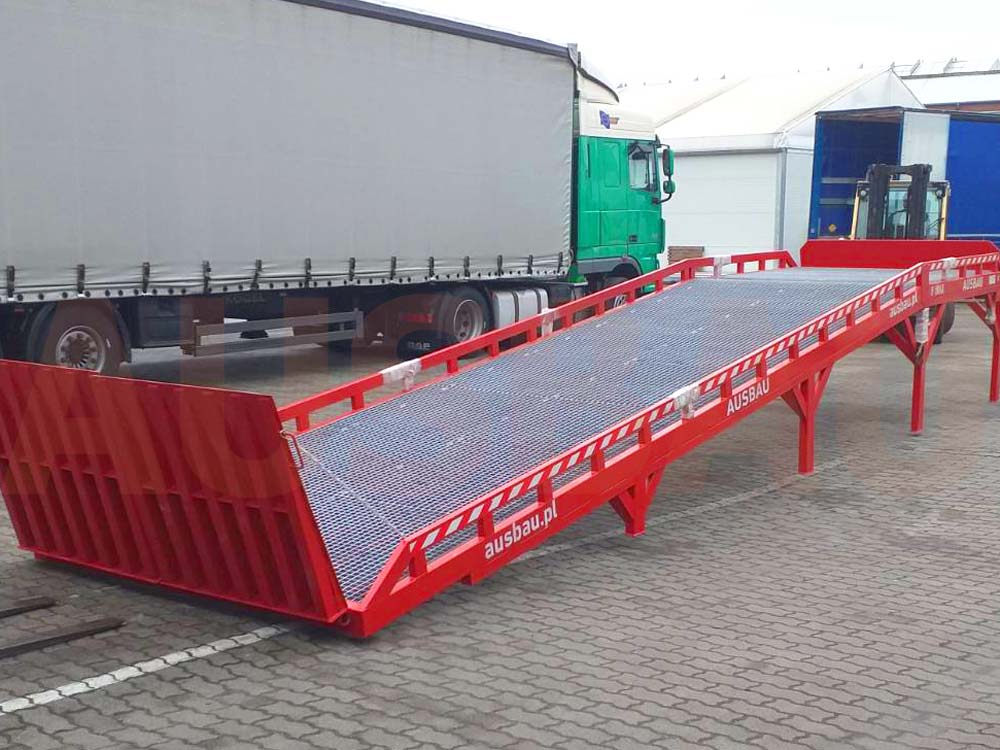

Fixed loading dock ramp AUSBAU-STB (with horizontal boards) is an inclined metal structure that allows the forklift to overcome the height difference between the ground level and a warehouse/truck.
Technical features of the fixed loading ramps AUSBAU-STB with horizontal platform:
| Load capacity, kg | 6000 / 8000 / 10000 |
| Total length, mm | 10800 / 12800 |
| Total width, mm | 2120 |
| Usable width, mm | 2000 |
| Length of inclined part, mm | 8000 / 10000 |
| Connecting lip length, mm | 300 |
| Working height, mm | 1100 / 1200 |
| Height of side protection, mm | 180 |
| Number of folding races, pcs | 2 |
| Slope angle | 6,89 / 8,63 |
| Material | S235 |
| Riding surface | zinc-coated anti-slip grating |
| Complete set | Set of chains on the ramp – 2 pcs. |
| Warranty | 18 months |
Stationary loading ramp dimensions (standard models):
| # | Model | Load capacity, kg | Ramp dimensions, mm | |||||||
| N | H | C | NHС | F | T | A | a° | |||
| 1 | STB6-8025 | 6000 | 8000 | 2500 | 300 | 10800 | 2000 | 2120 | 1100 / 1200 | 8.63 |
| 2 | STB6-10025 | 6000 | 10000 | 2500 | 300 | 12800 | 2000 | 2120 | 1100 / 1200 | 6.89 |
| 3 | STB8-8025 | 8000 | 8000 | 2500 | 300 | 10800 | 2000 | 2120 | 1100 / 1200 | 8.63 |
| 4 | STB8-10025 | 8000 | 10000 | 2500 | 300 | 12800 | 2000 | 2120 | 1100 / 1200 | 6.89 |
| 5 | STB10-8025 | 10000 | 8000 | 2500 | 300 | 10800 | 2000 | 2120 | 1100 / 1200 | 8.63 |
| 6 | STB10-10025 | 10000 | 10000 | 2500 | 300 | 12800 | 2000 | 2120 | 1100 / 1200 | 6.89 |
Warranty: 18 months.
Such stationary dock ramp is necessary especially for warehouses with inconvenient access for large vehicles. Due to the horizontal boards, the forklift can level its position before driving to the edge of the warehouse/truck, thereby increasing the driver’s viewing angle. In common with the mobile ramp, a fixed loading dock ramp with horizontal boards can also be equipped with additional options.
Additional options for the stationary yard loading ramp AUSBAU-STB

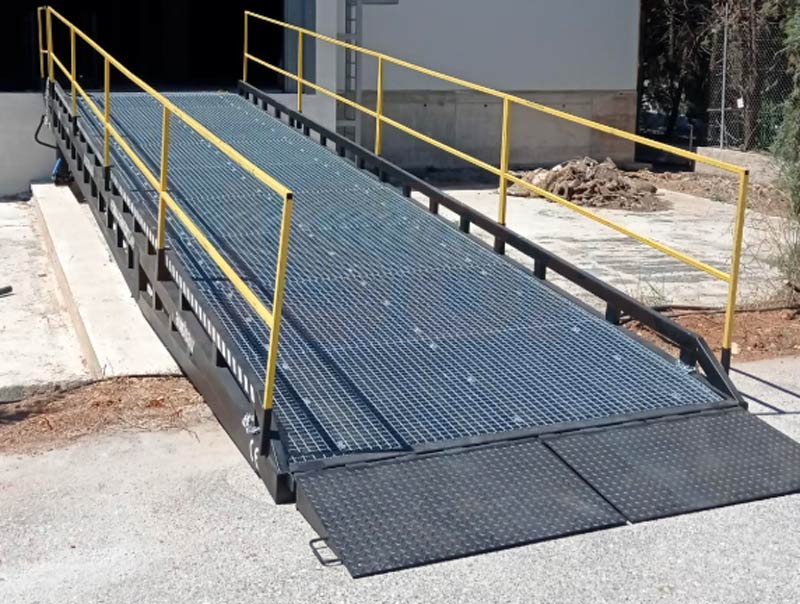

1. OPT-HR – additional protective hand railings, mountable.
2. OPT-3SW – three-sided unloading ramp.

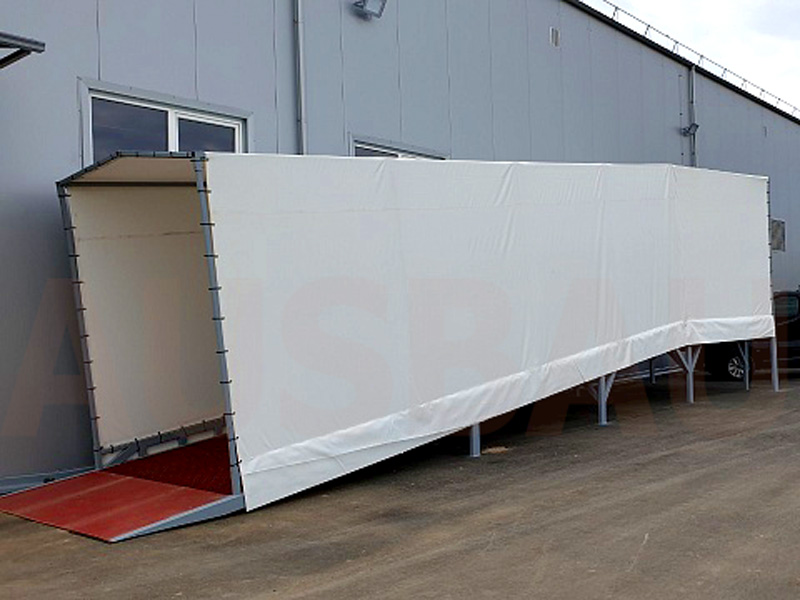

3. OPT-TC – tent сover over the ramp, mountable.
4. OPT-LD – ladder for pedestrians.
5. OPT-LDP – ladder with platform for pedestrians.
6. OPT-BR – hydraulic loading bridge.
7. OPT-HA – height adjustment.
8. OPT-DL – built-in dock leveller.
9. OPT-WL – pair of wheels for local small moving.
10. OPT-CLR – different color.
