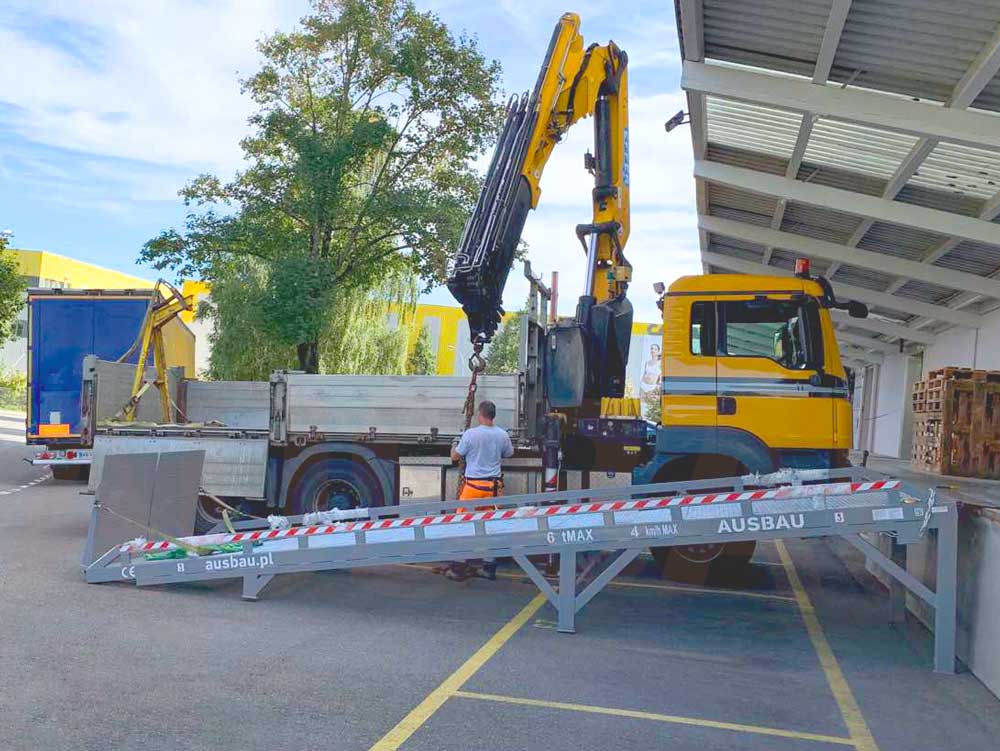

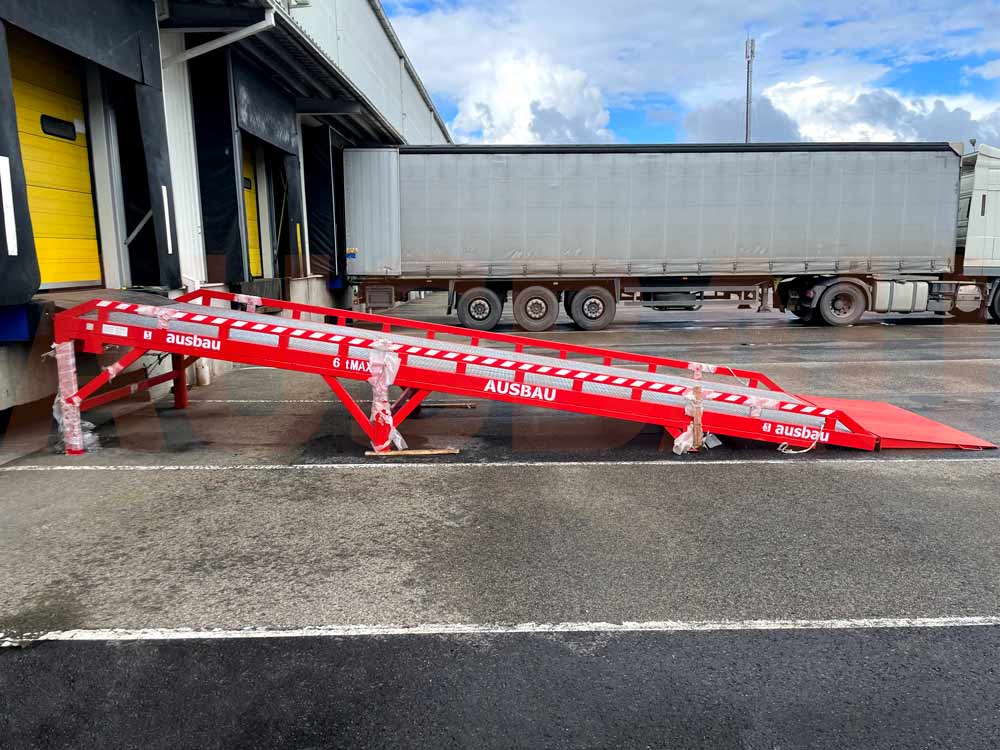

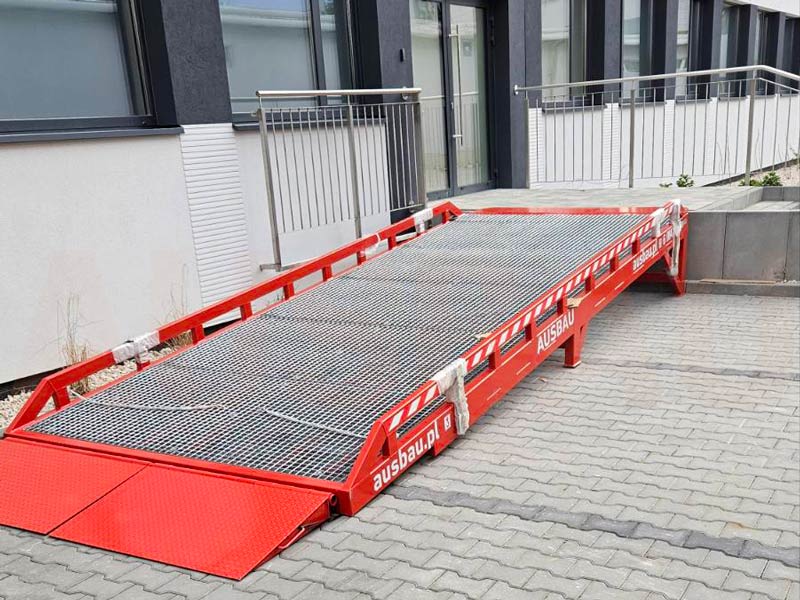

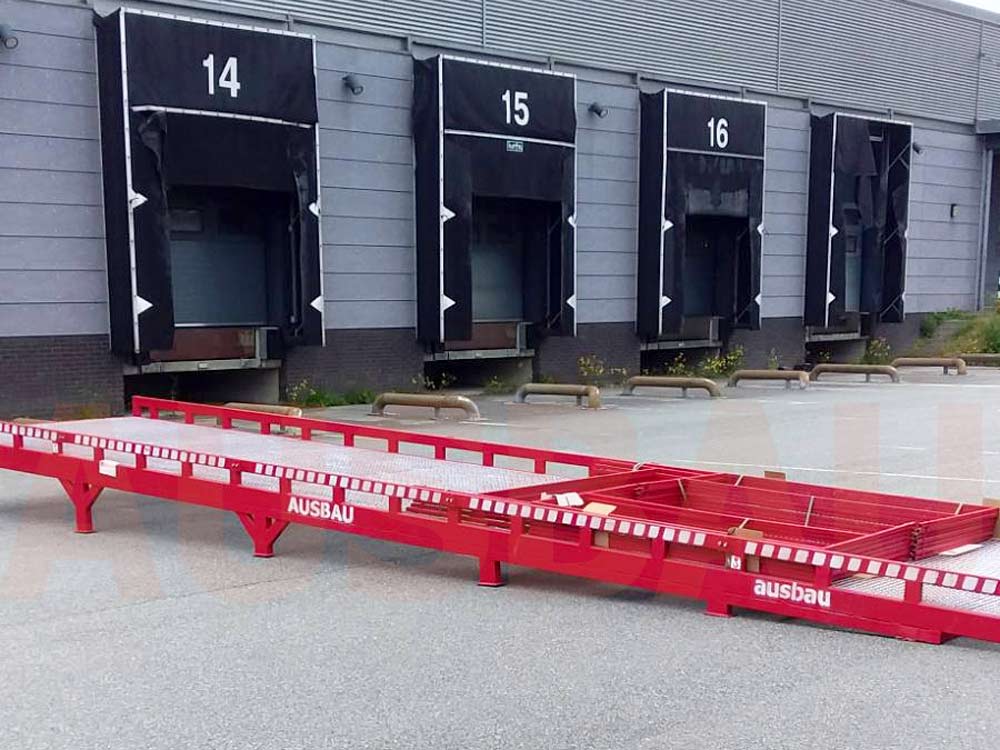

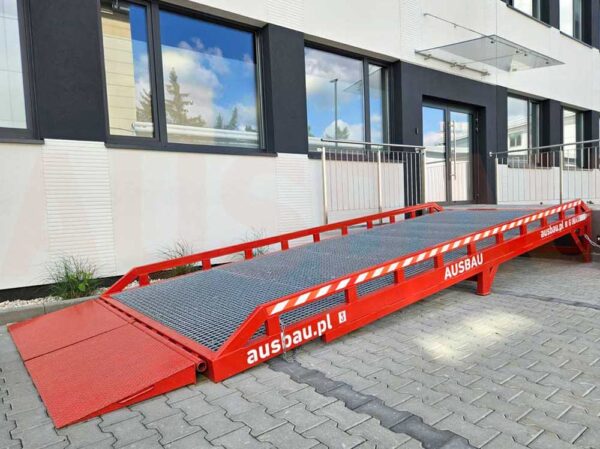

Fixed ramp (without horizontal platform)

A fixed loading ramp without horizontal boards is a fixed ramp structure for loading products in a warehouse with a forklift. Stationary ramps are not adjustable unlike mobile ramps. They are permanently fixed; the edge of the ramp is connected to the warehouse and securely bolted.

Technical features of the fixed loading ramp AUSBAU-ST:

Load capacity, kg	6000 / 8000 / 10000
Total length, mm	8300 / 10300 / 12300
Total width, mm	2120
Usable width, mm	2000
Length of inclined part, mm	8000 / 10000 / 12000
Connecting lip length, mm	300
Working height, mm	1100 / 1200
Height of side protection, mm	180
Number of folding bridges, pcs	2
Slope angle	5,74 / 6,89 / 8,63
Material	S235
Riding surface	zinc-coated anti-slip grating
Complete set	set of securing chains
Warranty	18 months

Dimensions of standard models:

#	Model	Load capacity, kg	Ramp dimensions, mm
#	Model	Load capacity, kg	N	C	NС	F	T	A	a°
1	AB-ST6-80	6000	8000	300	8300	2000	2120	1100 / 1200	8.63
2	AB-ST6-100	6000	10000	300	10300	2000	2120	1100 / 1200	6.89
3	AB-ST6-120	6000	12000	300	12300	2000	2120	1100 / 1200	5.74
4	AB-ST8-80	8000	8000	300	8300	2000	2120	1100 / 1200	8.63
5	AB-ST8-100	8000	10000	300	10300	2000	2120	1100 / 1200	6.89
6	AB-ST8-120	8000	12000	300	12300	2000	2120	1100 / 1200	5.74
7	AB-ST10-80	10000	8000	300	8300	2000	2120	1100 / 1200	8.63
8	AB-ST10-100	10000	10000	300	10300	2000	2120	1100 / 1200	6.89
9	AB-ST10-120	10000	12000	300	12300	2000	2120	1100 / 1200	5.74

Warranty: 18 months.

A fixed loading ramp without horizontal boards is perfect for warehouses with high loading and warehouse intensity. It allows the forklift to freely enter the warehouse surface from the ground level, as well as leave it, overcoming the height difference. Fixed ramps speed up the loading and unloading processes in the warehouses.
