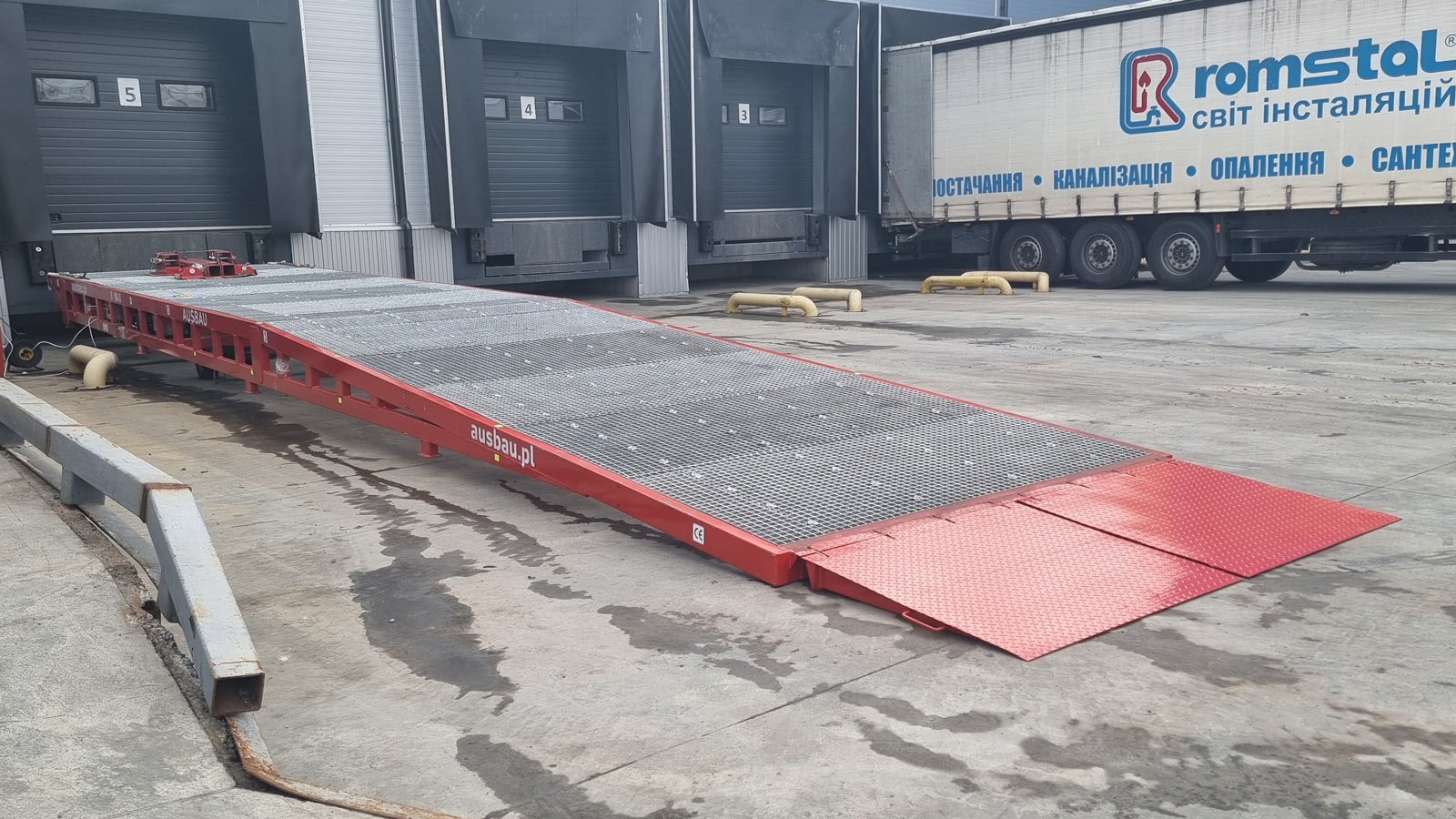

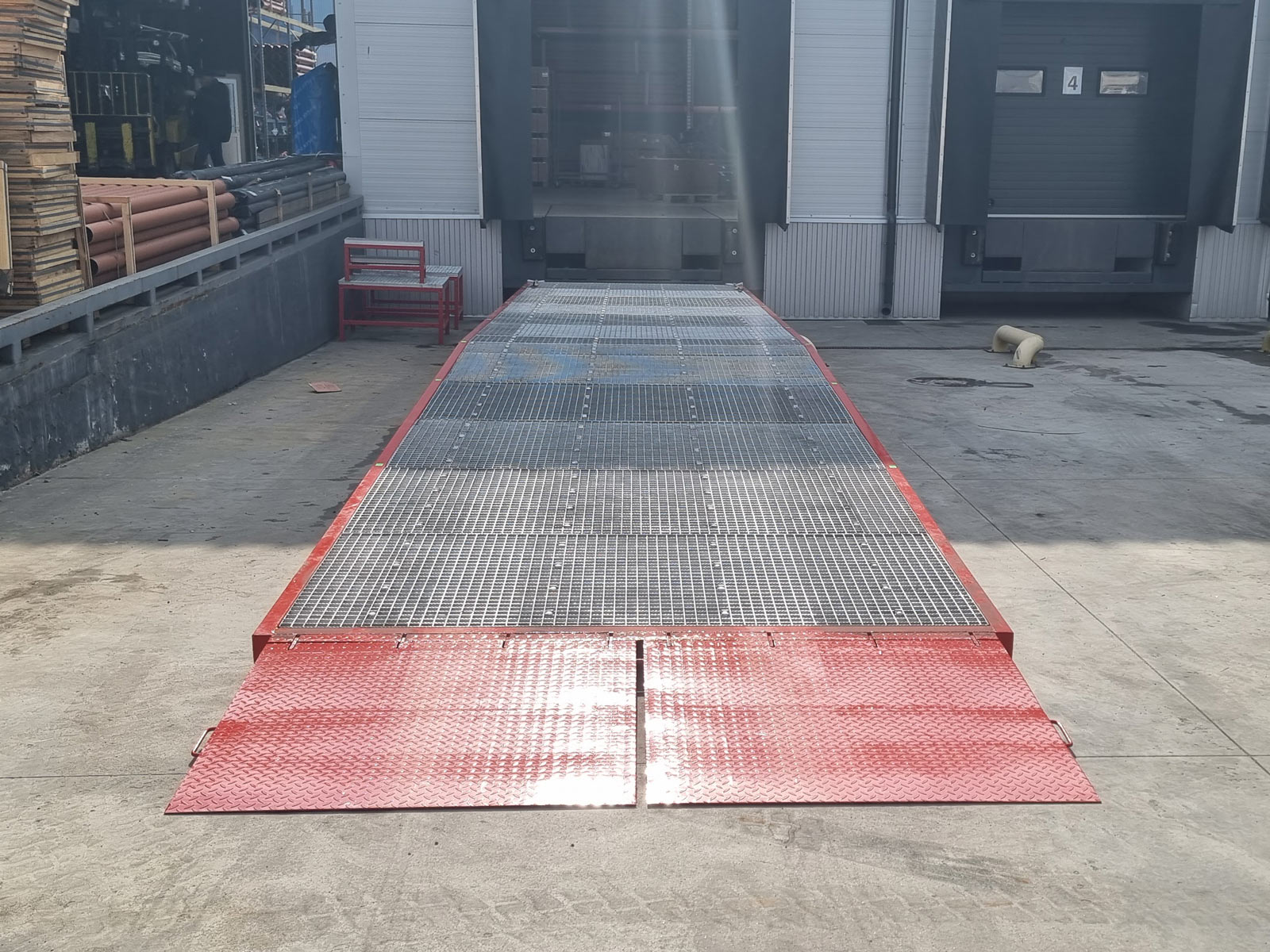

Universal mobile ramp for vans & LCV

The AUSBAU mobile loading ramp is designed to facilitate fast and safe loading and unloading of vehicles at warehouses, logistics centers, and manufacturing facilities. It enables efficient handling of light-duty trucks, vans, and other commercial vehicles without the need to build complex permanent infrastructure.

The main advantage of a loading ramp for LCV is its mobility, which allows for flexible organization of logistics processes on the premises. The mobile ramp for light commercial vehicles can be easily moved between loading zones and repositioned according to current needs. Thanks to its height adjustment, it is suitable for use with various types of vehicles – from compact vans (such as the VW Caddy or Ford Transit) to large trucks.

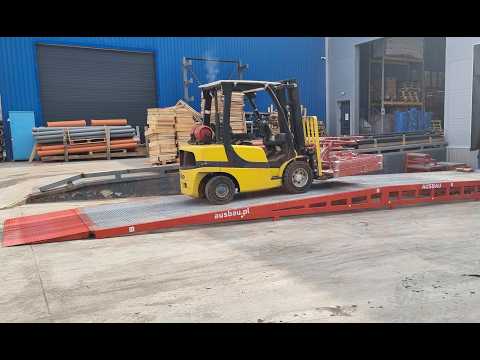

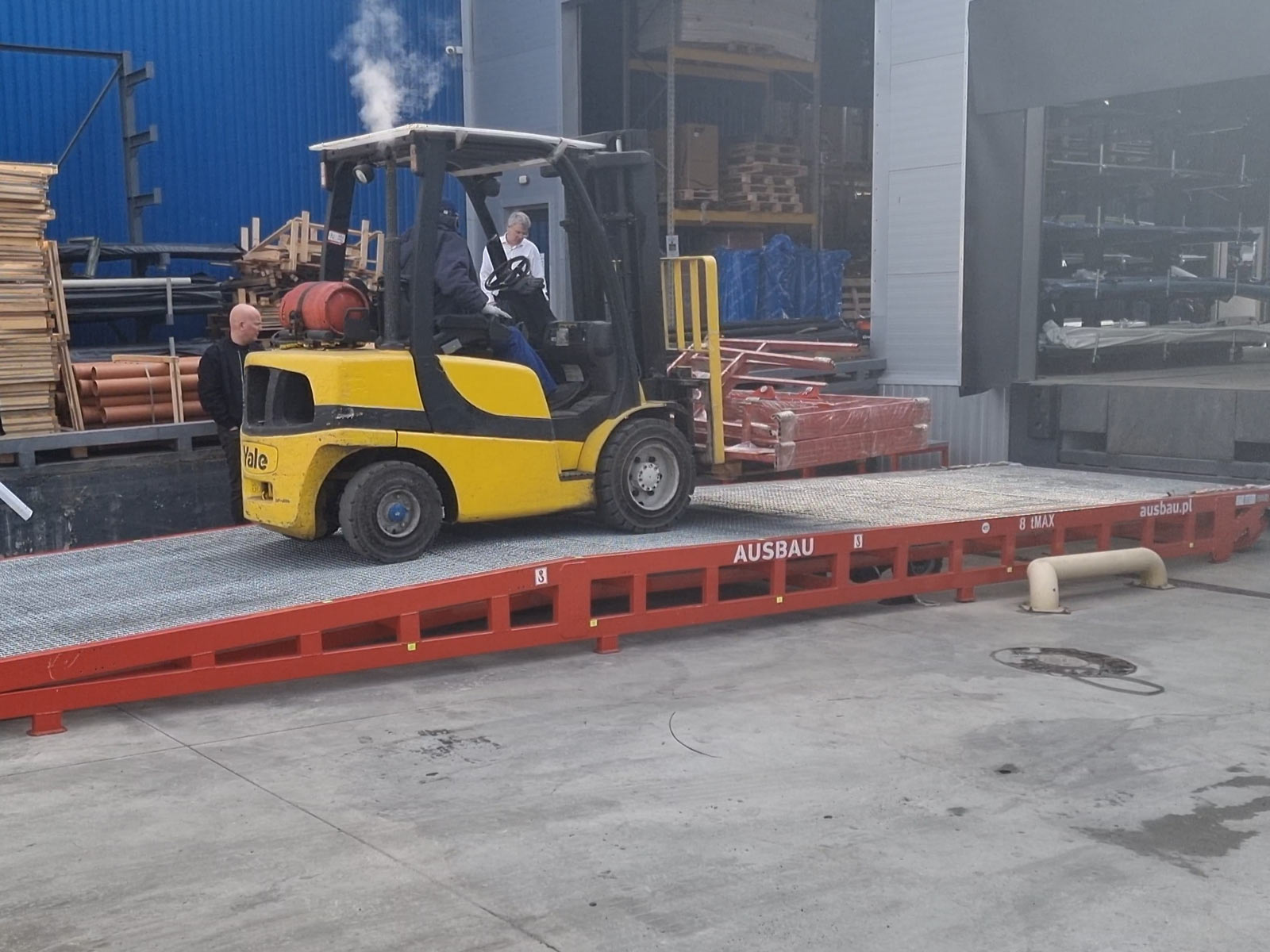

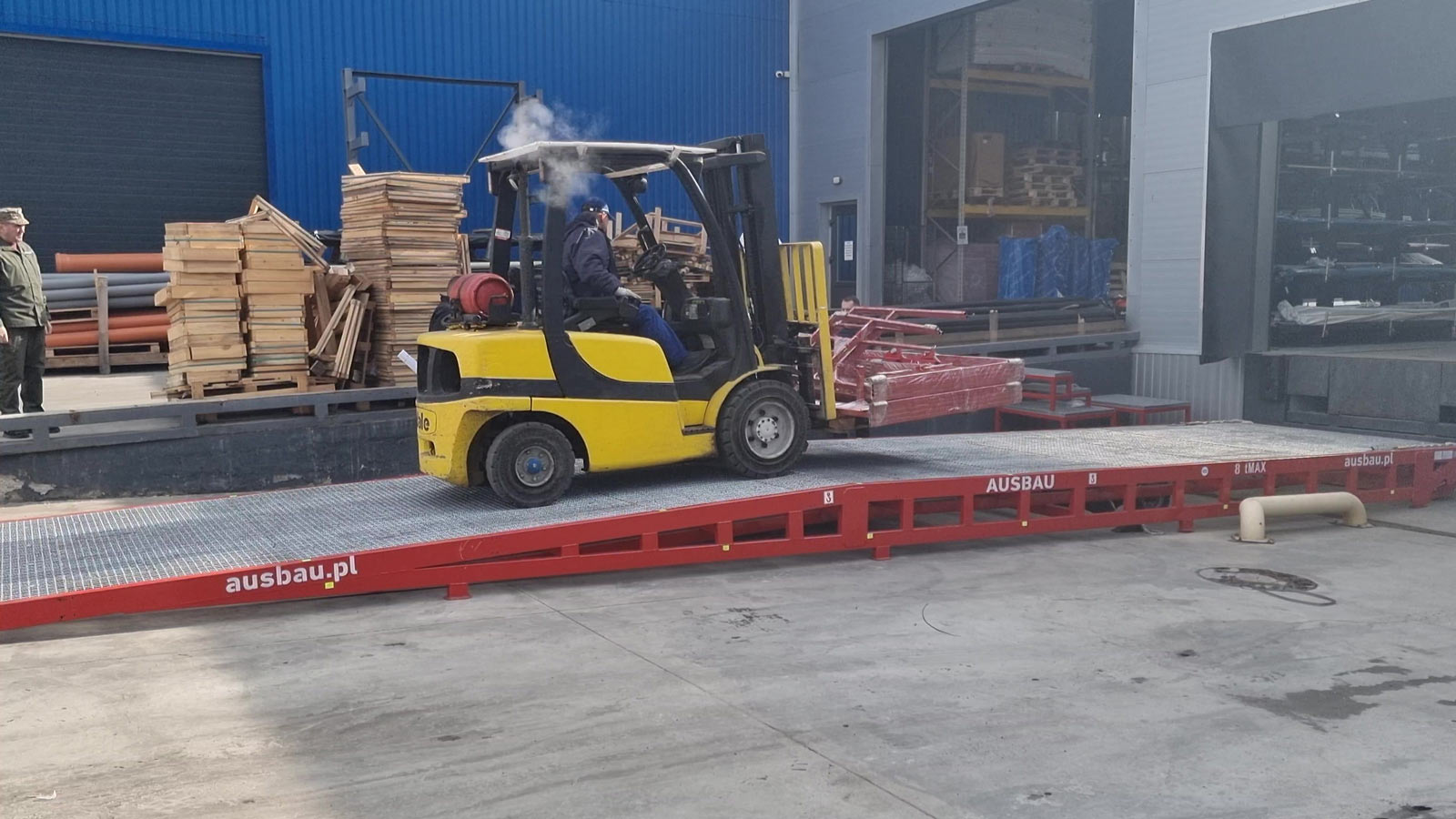

Design of a mobile loading ramp ensures a smooth transition between ground level and the level of the warehouse, truck bed, container, or railcar. This allows forklifts or warehouse equipment to safely drive into the vehicle, significantly speeding up the loading and unloading of goods.

The AUSBAU mobile ramp for light commercial vehicles optimizes warehouse operations, boosts productivity, and ensures safe loading of vehicles.

Technical characteristics

Load capacity, kg	8000
Total length, mm	13380
Total width, mm	2350
Usable width, mm	2260
Length of inclined part, mm	6500
Length of horizontal part, mm	6500
Connecting lip length, mm	300
Connecting lip width, mm	250
Min. working height, mm	500
Max. working height, mm	1400
Height of side protection, mm	180
Number of folding bridges, pcs	2
Number of wheels, pcs	2
Wheels	solid rubber
Material	S235
Riding surface	zinc-coated anti-slip grating / chequer plate / other
Complete set	tow pole for local movement of the ramp, support legs, wheel assembly, which allows the ramp to be moved.
Warranty	18 months
