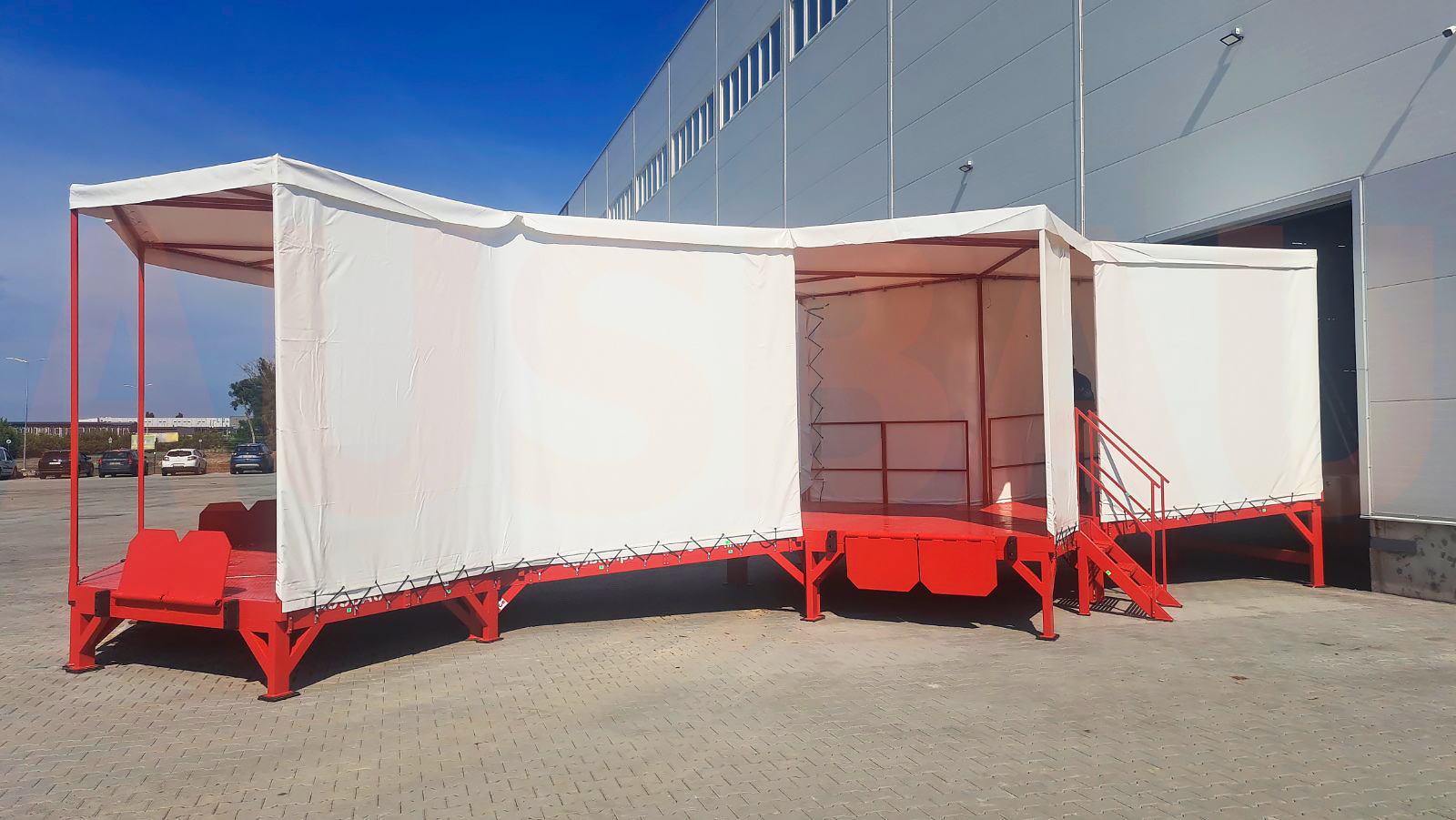

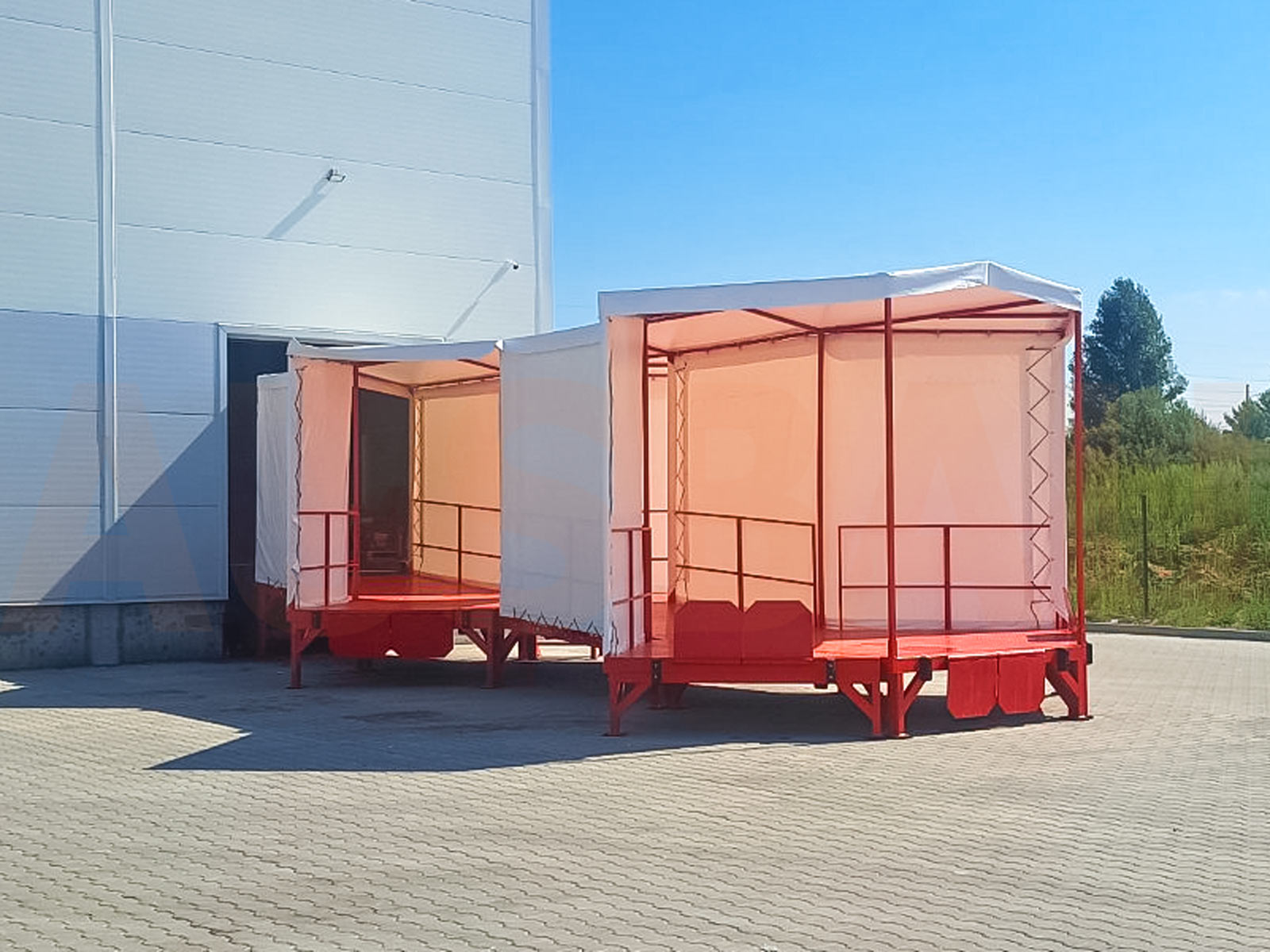

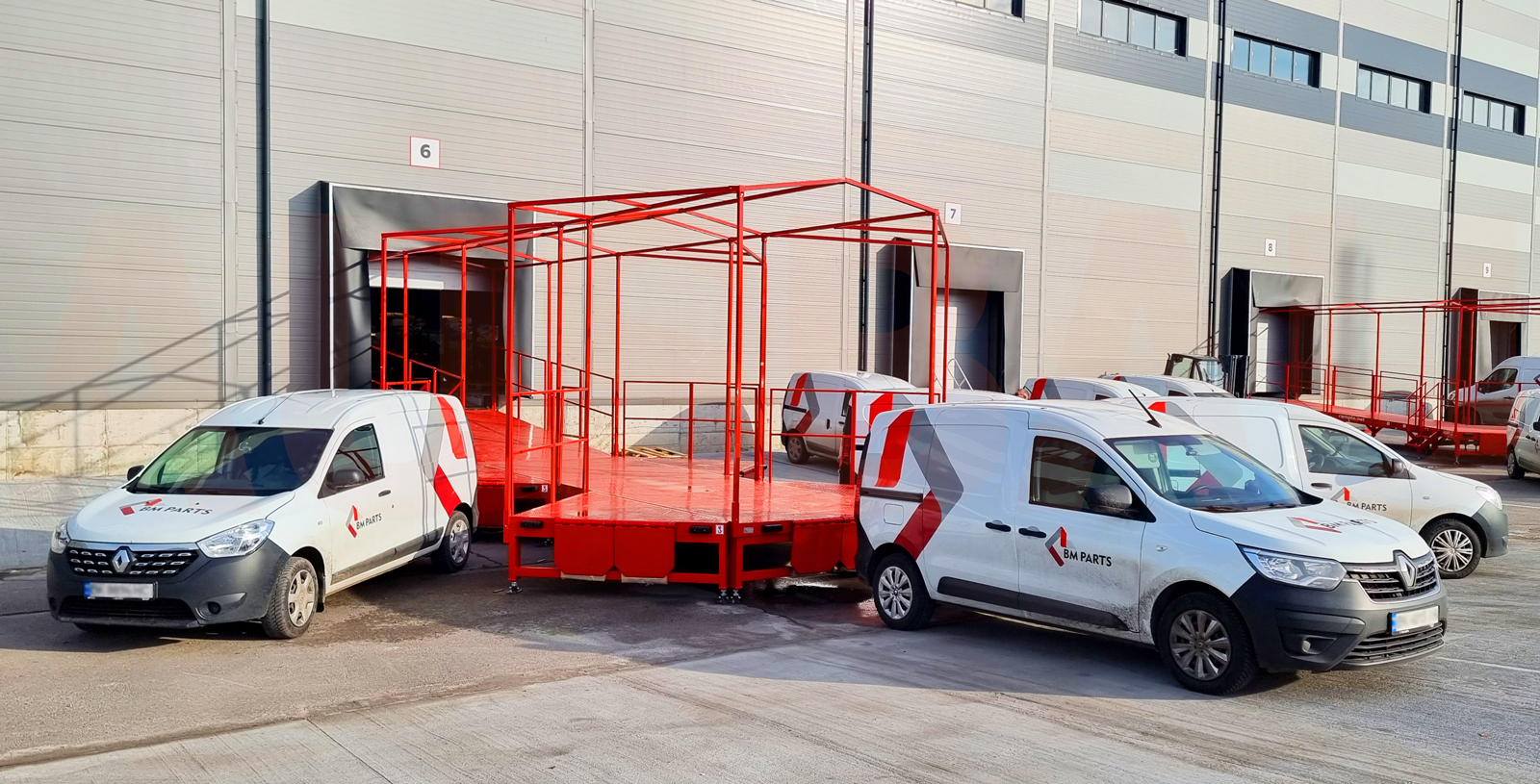

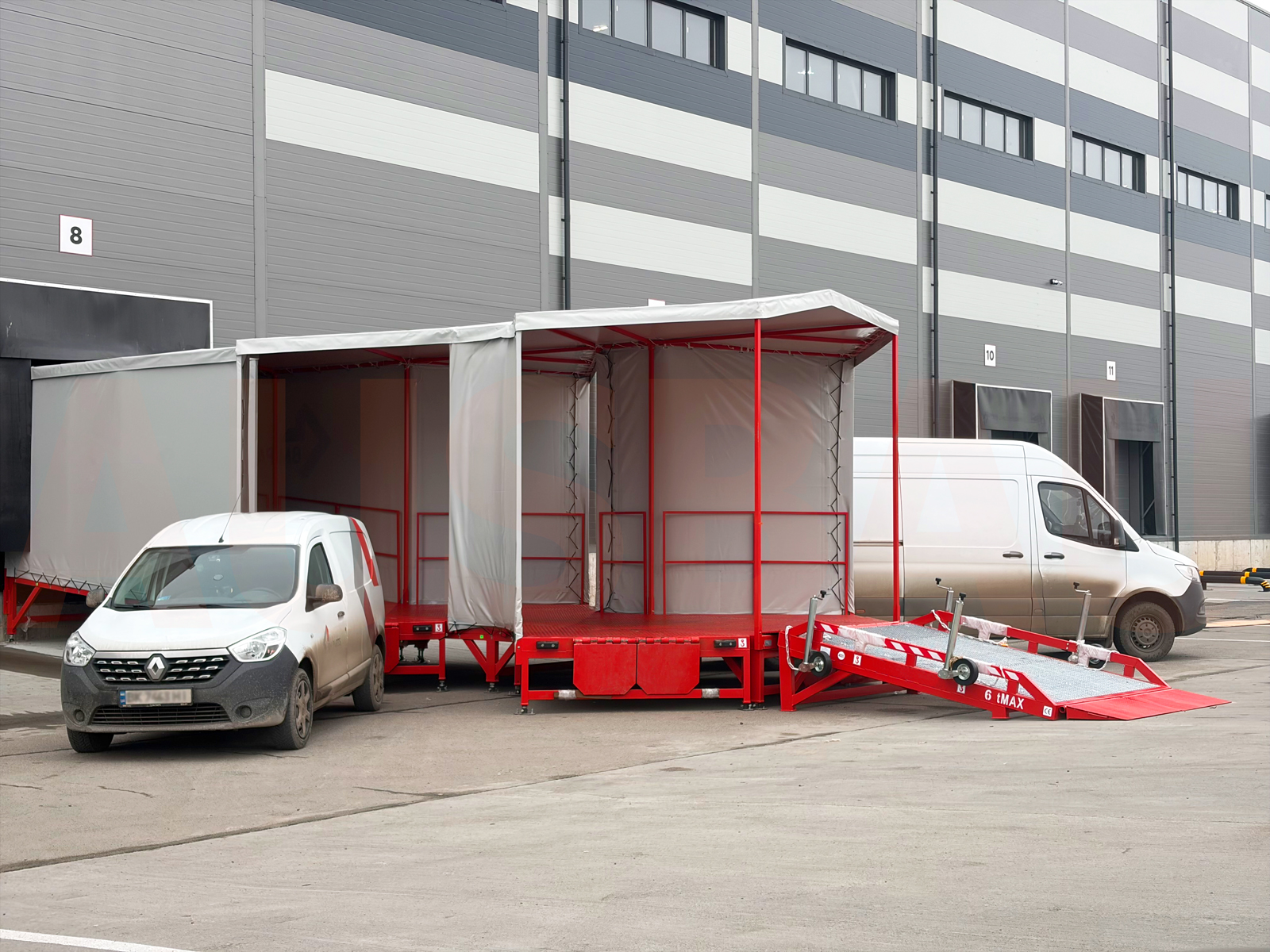

The modular loading platform is designed for operation with light- and medium-duty commercial vehicles, including vans, minibuses, service vehicles, and courier vehicles that perform regular logistics operations. The solution is used as a loading dock platform for warehouses, logistics centres, and e-commerce hubs where cargo handling speed, throughput, and efficient use of warehouse space are critical.

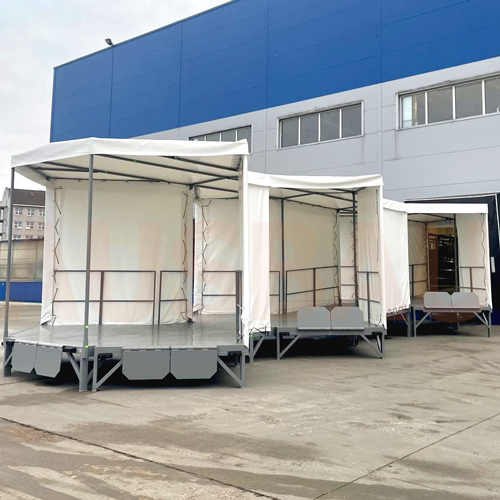

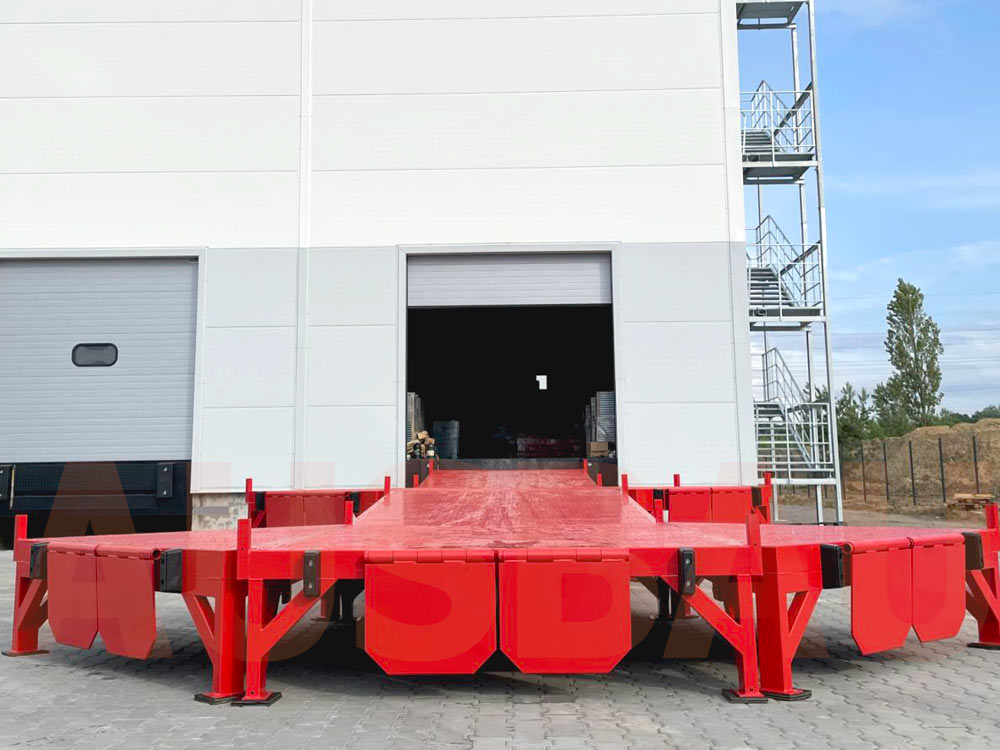

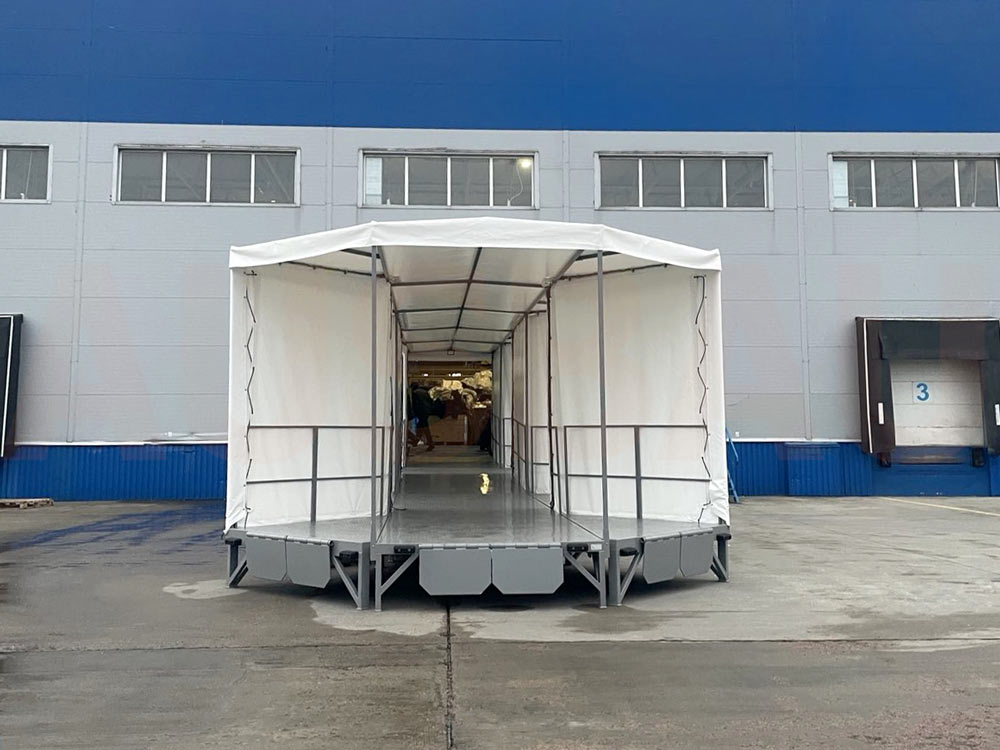

A single central modular platform/ramp with additional side sections allows 5, 7, or more working/loading positions to be created and enables several vehicles to be serviced simultaneously without the need to construct separate stationary loading docks for each vehicle. This solution significantly increases warehouse logistics productivity, reduces vehicle downtime, and optimises commercial vehicle operations.
The loading platform structure is modular and prefabricated. All elements are manufactured as separate sections, which significantly simplifies transportation, delivery, and on-site installation. This allows the system to be used as a permanent, temporary, or mobile logistics solution depending on the customer’s requirements.
Technical characteristics
| Number of platforms in the complex, pcs | up to 5 – 7 |
| Platform load capacity, kg | 3000 / 6000 |
| Total length of the complex, mm | 11800 / 16000 |
| Total width of the platform, mm | 2120 / 2320 |
| Usable width of the platform, mm | 2000 / 2200 |
| Total width of the side platform, mm | 2120 |
| Connecting lip length, mm | 500 |
| Working height, mm | 700 / 600 |
| Riding surface | zinc-coated anti-slip grating / chequer plate |
| Warranty | 18 months |
Benefits of a modular loading platform:
• Simultaneous operation with 5-7+ vehicles.
• Efficient use of warehouse space through diagonal positioning of loading positions.
• Reduced loading times and vehicle downtime.
• Suitable for manual pallet trucks, electric pallet trucks, and forklifts.
• Reinforced steel frame for intensive operation.
• Anti-slip chequer plate surface for safe operation.
• Suitable for warehouses, logistics centres, e-commerce facilities, and sorting hubs.
• Can be used as a permanent or temporary loading ramp / loading dock system.
Additional options:
1. OPT-TC – tent сover over the ramp, mountable.
2. OPT-HR – additional protective hand railings, mountable.
3. OPT-BR – hydraulic loading bridge.
4. OPT-LD – ladder for pedestrians.
5. OPT-LDP – ladder with platform for pedestrians.

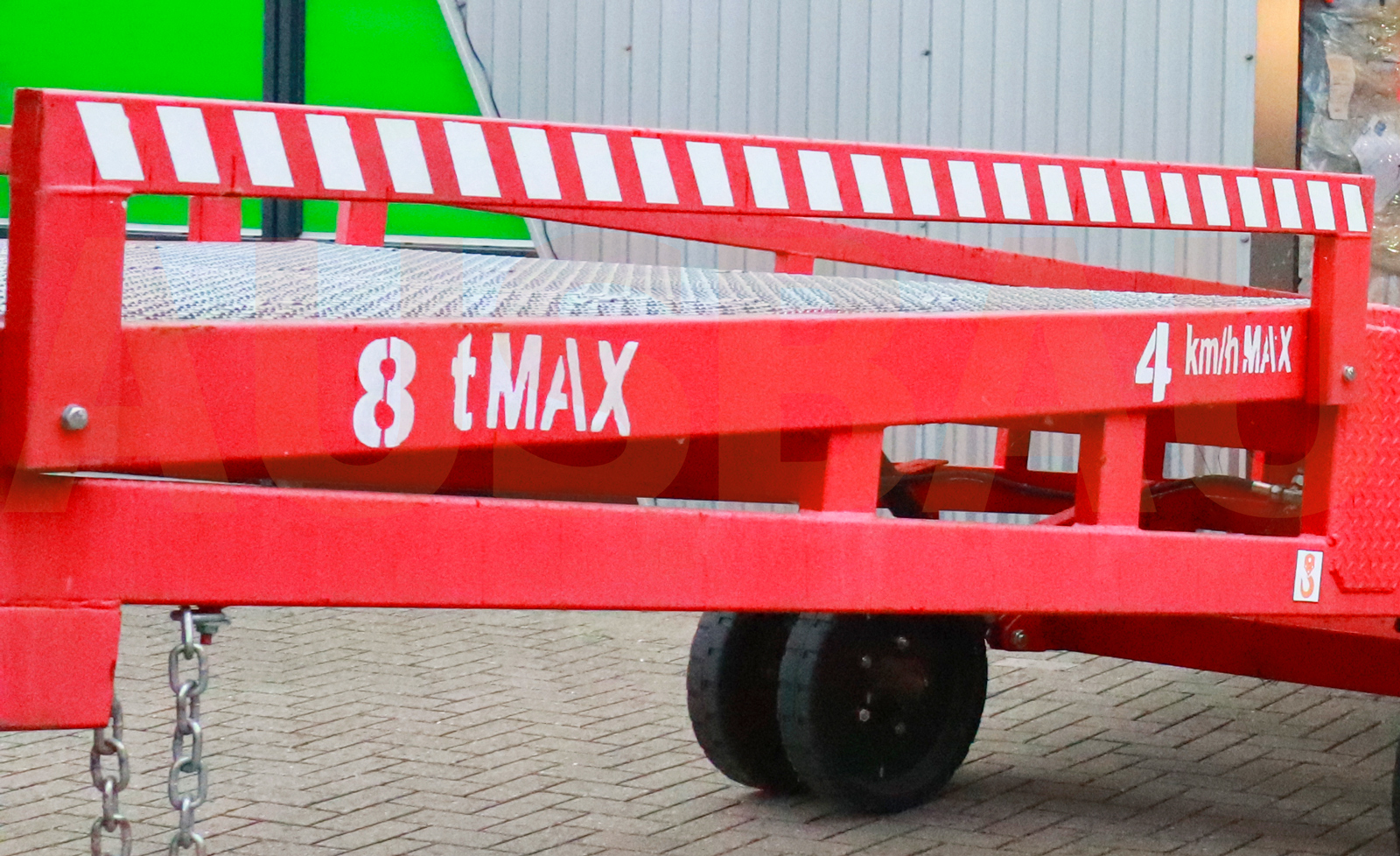

6. OPT-AB – additional bridge.
7. RRB – rubber bumpers rectangular, pair.
8. OPT-DL – built-in dock leveller.
9. OPT-CLR – different color.
