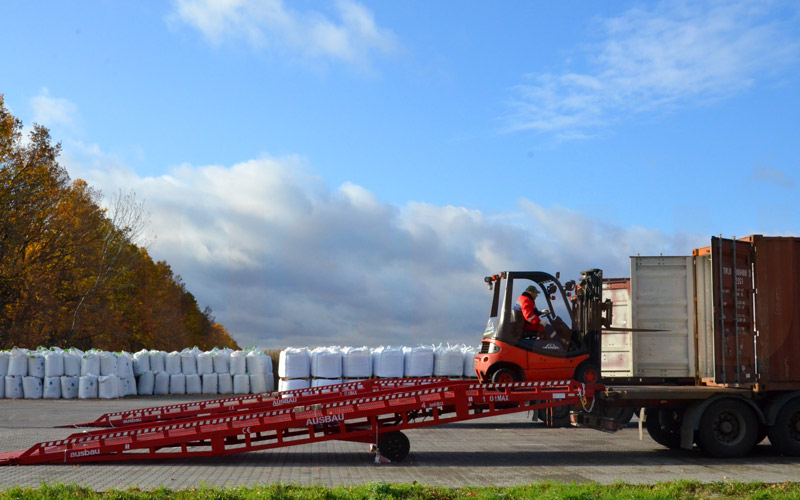

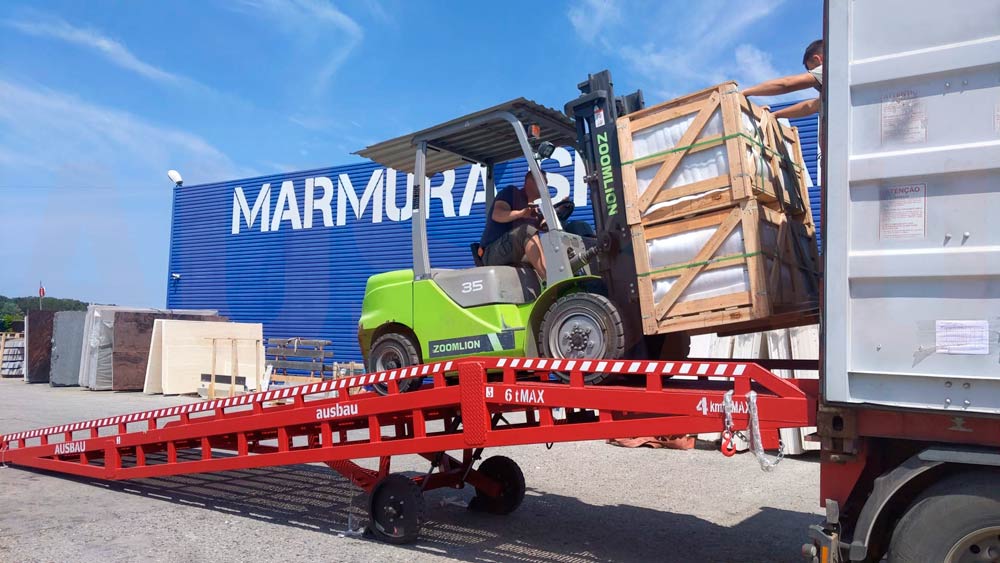

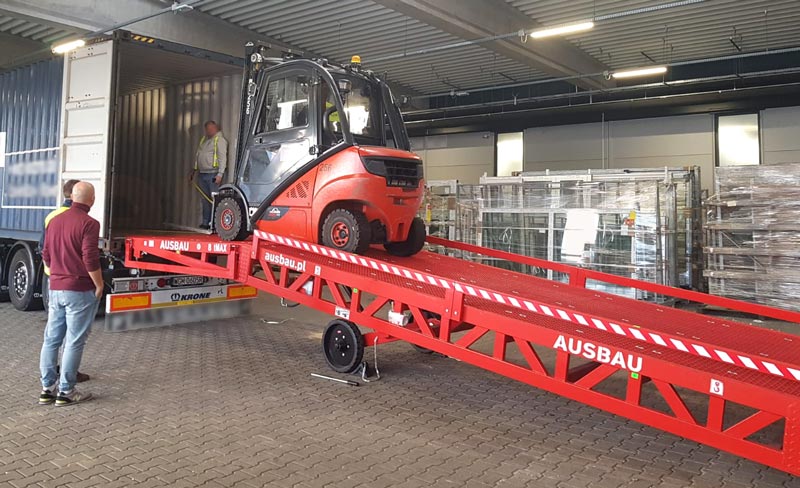

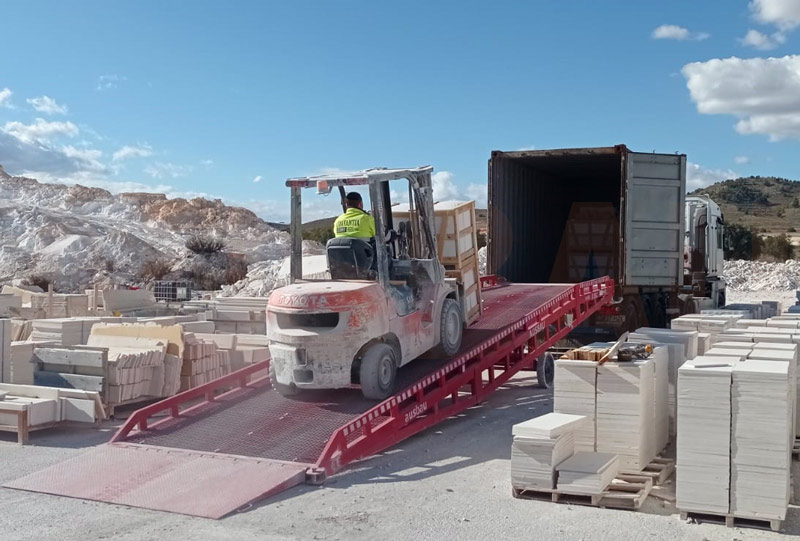

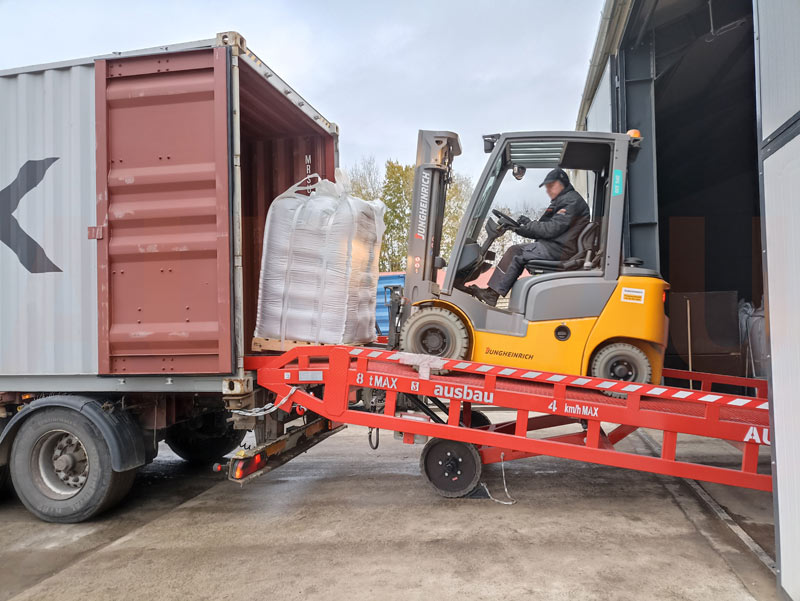

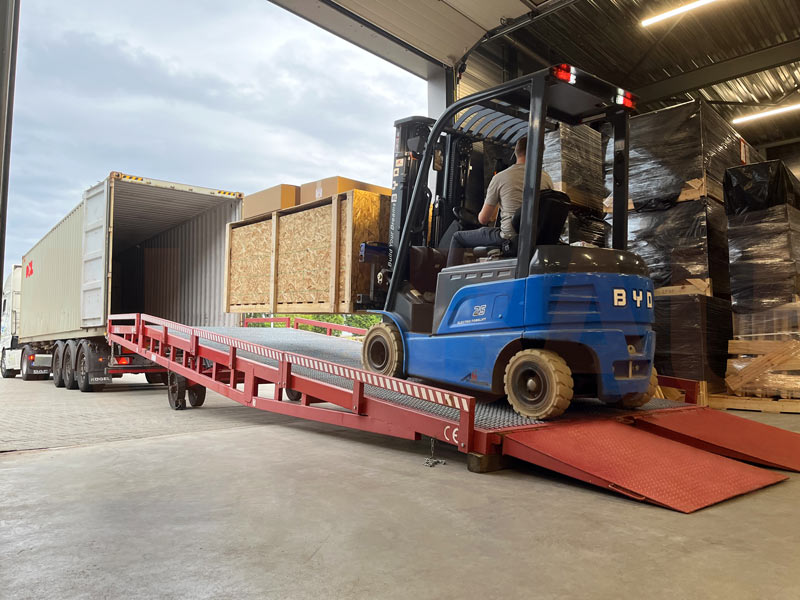

AUSBAU mobile ramps for containers offer an innovative solution for the efficient loading and unloading of trucks and containers using forklifts, even in the absence of stationary loading infrastructure. These container ramps provide a smooth transition between the ground and the container, accelerating logistics processes.
For containers located closer to the edge of the platform, we offer standard AUSBAU loading ramp models with loading capacity 6-12 tons. They are more versatile and economical.
We also create mobile ramps for containers according to individual requirements, adapting their parameters to the specific needs of the client. Our special models with extended horizontal sections and no lower supports allow access to containers located in the center of the platform or on frames, even if they are far from the edge. These loading ramps are suitable for working with long platforms designed for 40-foot and 20-foot containers and support a load capacity of up to 30 tons.
Technical characteristics:
| Load capacity, kg | up to 30 000 |
| Total length, mm | 8500 – 13000 |
| Total width, mm | 2130 – 2950 |
| Usable width, mm | 2000 – 2820 |
| Length of inclined part, mm | 8000 – 12000 |
| Length of horizontal part, mm | 1000 – 4000 |
| Connecting lip length, mm | 300 |
| Connecting lip width, mm | 2000 – 2800 |
| Min. working height, mm | 900 |
| Max. working height, mm | 1550 / 1750 |
| Height of the safety railings, mm | 180 |
| Number of folding bridges, pcs | 2 |
| Number of wheels, pcs | 2 / 4 |
| Wheels | solid / pneumatic / other |
| Material | S235 |
| Driving surface | zinc-coated anti-skid grating / lentil sheeting / other |
| Components | Rubber wheel chocks – 2 pcs; Tow pole – 1 pc; Set of chains on the ramp – 7 pcs; Manual hydraulic pump with handle – 1 pc. |
| Warranty | 18 months |
Additional options for our ramps enhance their functionality and safety. We propose such additional options for mobile ramps:
Additional options for mobile loading ramps
1. OPT-2SL – safety legs adjustable in height, installed on ramp.
2. OPT-HR – additional protective hand railings, 1100mm height, mountable.
3. OPT-EHP – electric hydraulic station instead of manual.
4. OPT-EМHP – electric hydraulic station and manual pump
5. OPT-2SL3SW – three-sided unloading mobile ramp. Supplied with safety legs.
6. OPT-4WL – additional pair of wheels.
7. OPT-TC – tent cover over the ramp, mountable.
8. OPT-CLR – choosing a different color (standard color is red).
