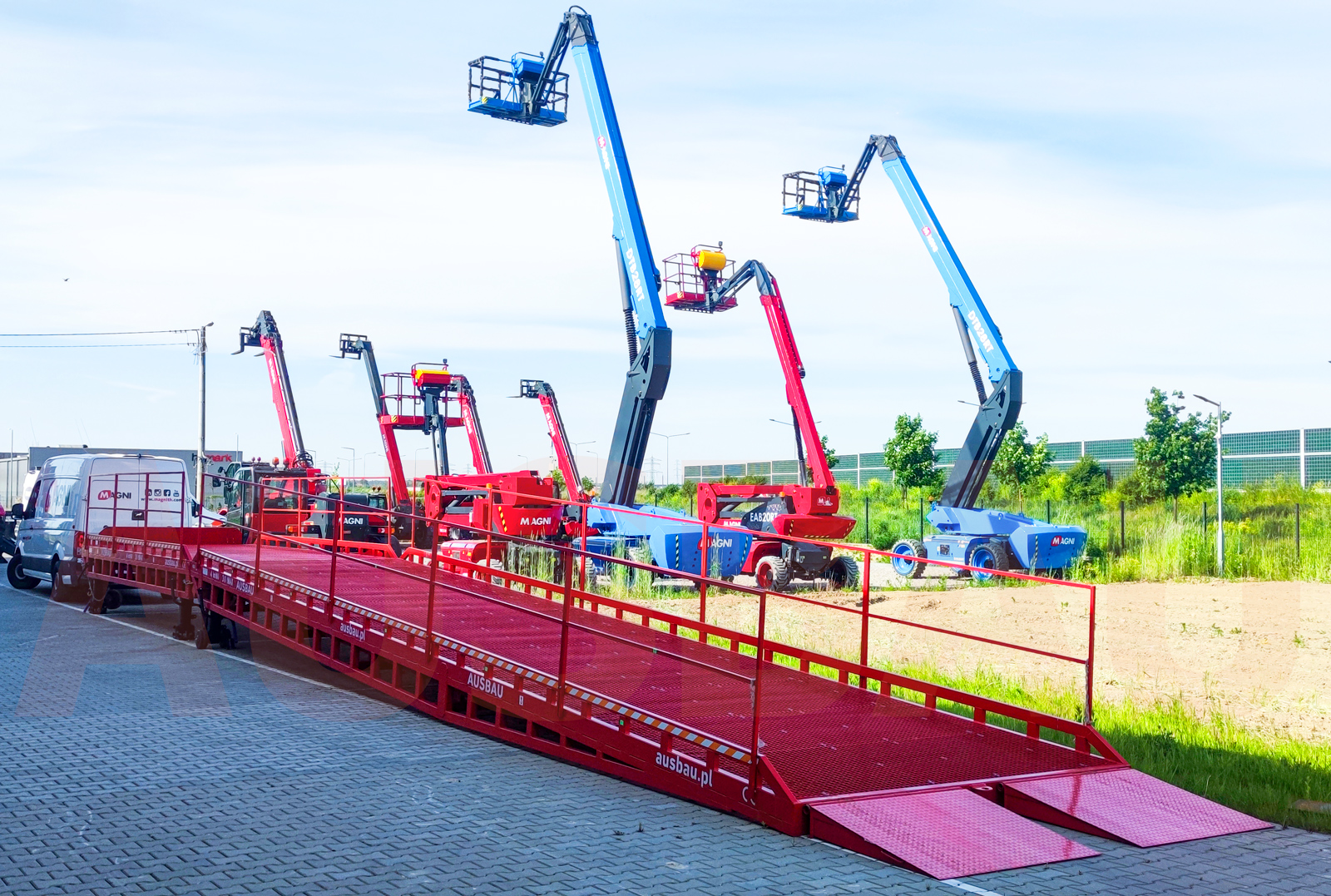

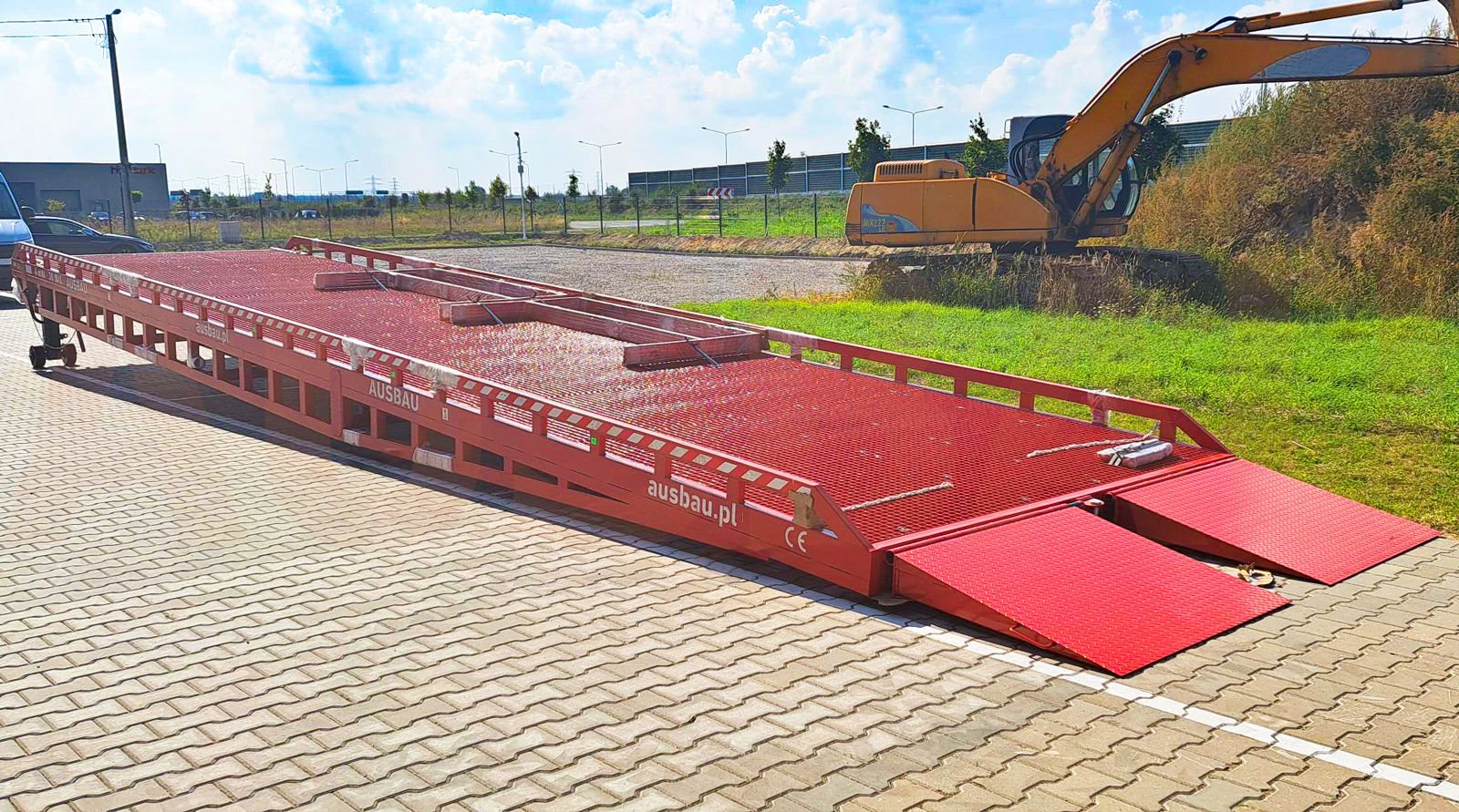

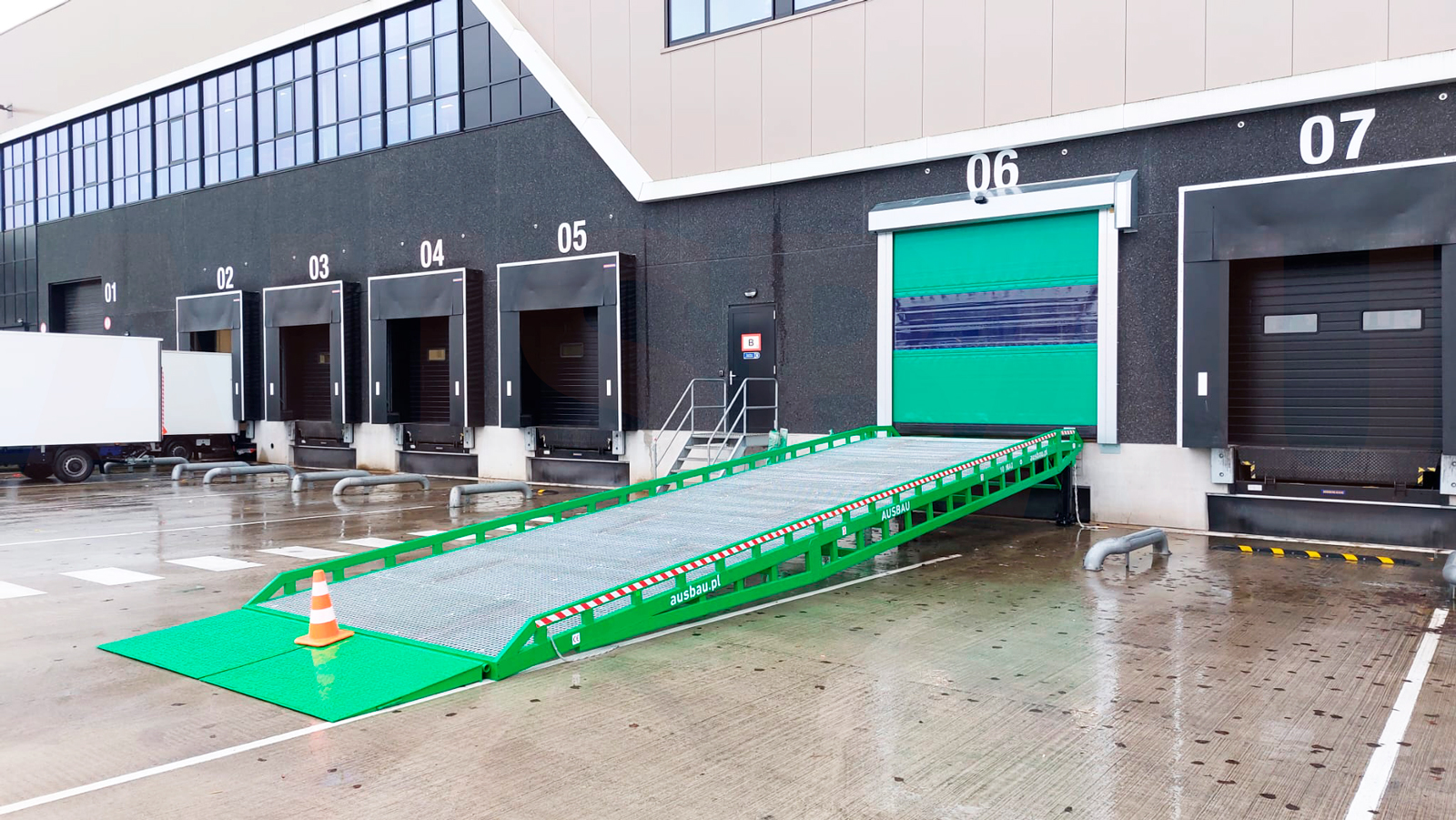

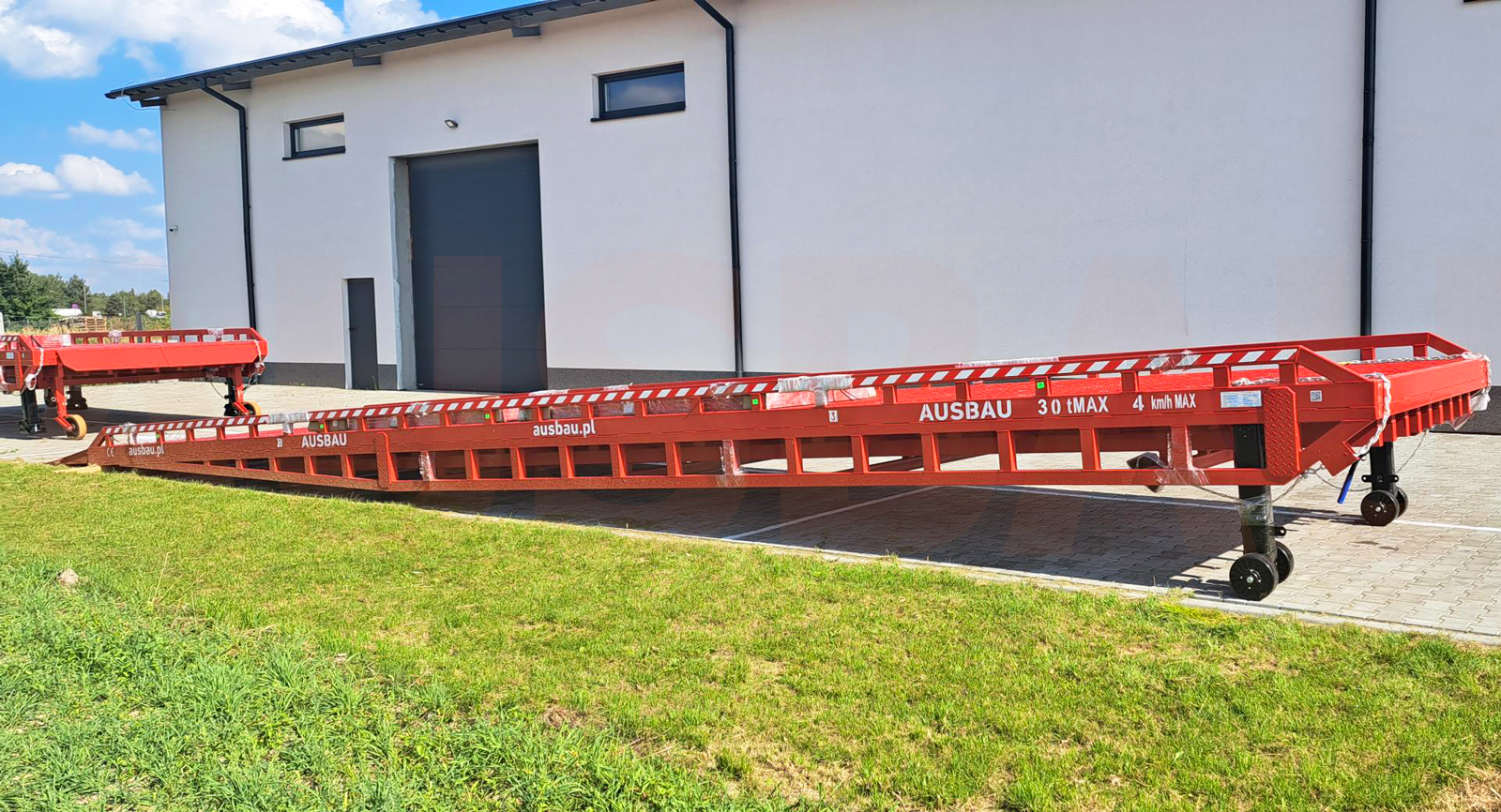

A mobile ramp with telescopic legs adjustable in height is a universal solution for quick and safe loading or unloading of trucks, containers and semi-trailers.
Unlike fixed ramp models, the telescopic system makes the mobile ramp as versatile as possible. A single device can serve vehicles with different floor heights, saving time, speeding up the loading process and reducing the cost of additional equipment.

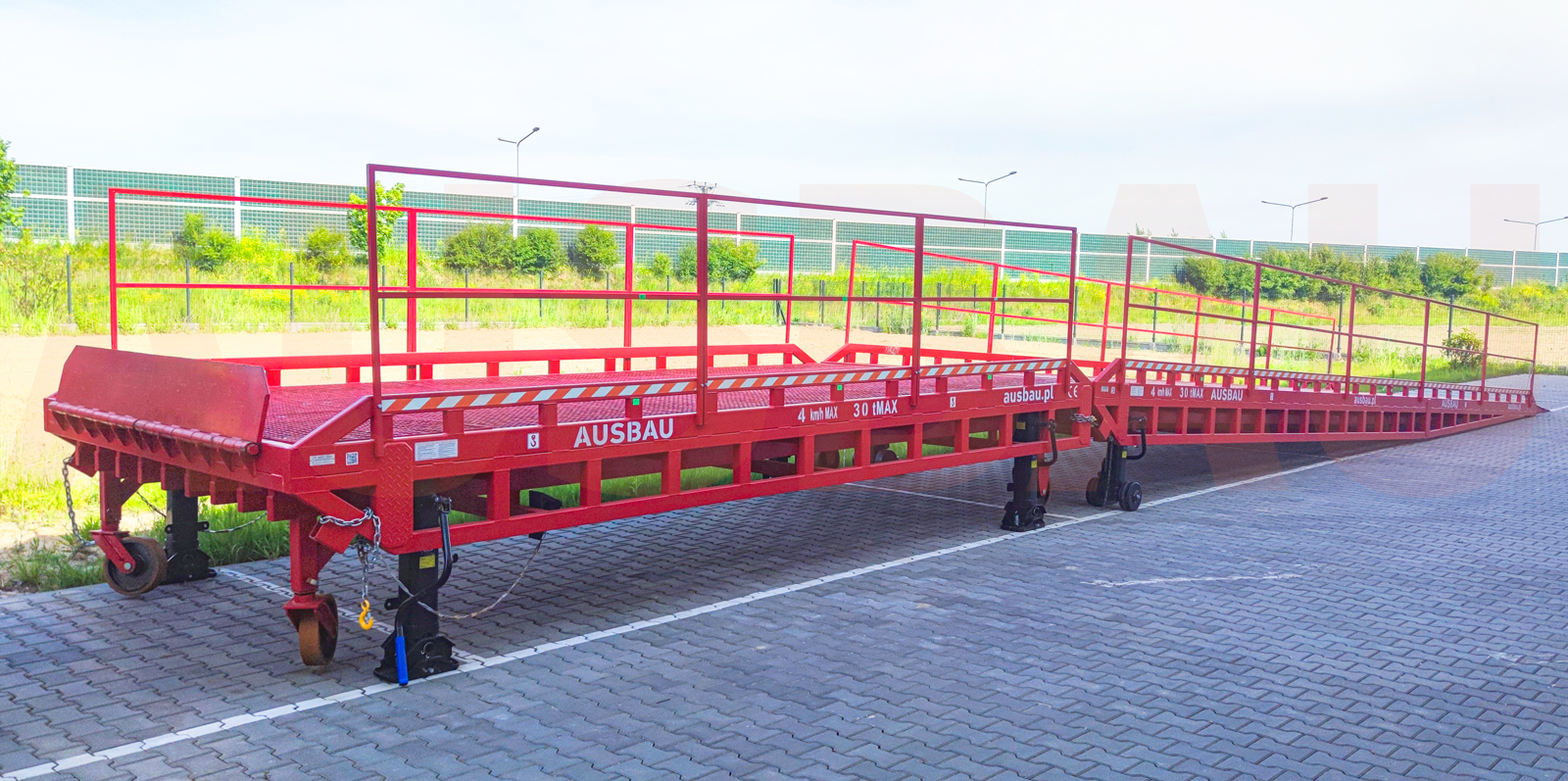

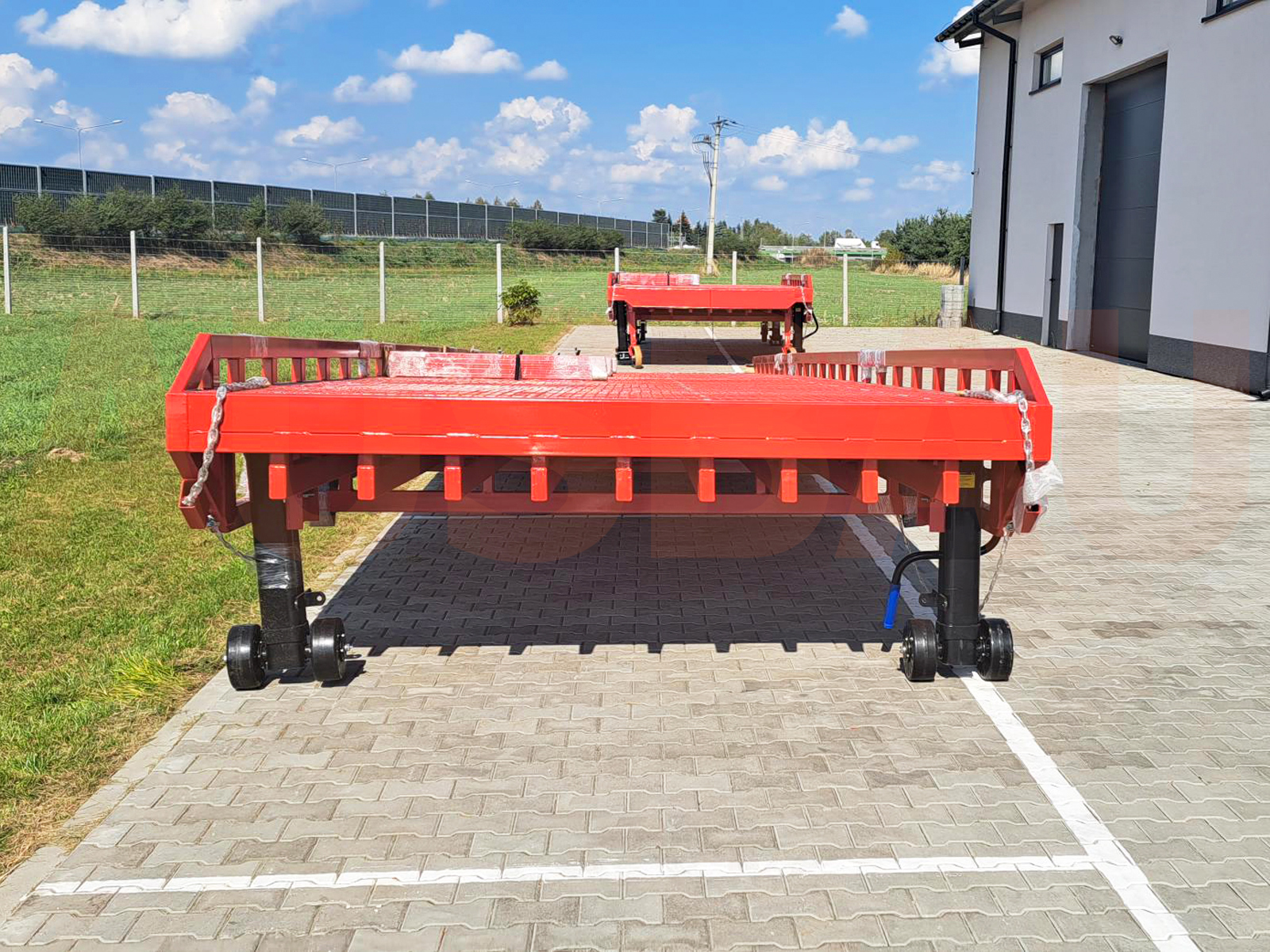

The main design feature is adjustable telescopic legs, which allow the mobile loading ramp height to be adjusted depending on the type of vehicle and the site conditions. This ensures convenient access for the forklift even at sites with different loading platform heights or when working on uneven surfaces.
Technical characteristics:
| Load capacity, kg | 6000 – 30000 |
| Total length, mm | up to 13000 |
| Total width, mm | up to 2950 |
| Usable width, mm | up to 2850 |
| Length of inclined part, mm | 1000-4000 |
| Connecting lip length, mm | 300 |
| Connecting lip width, mm | up to 2850 |
| Min. working height, mm | 950 |
| Max. working height, mm | 1800 |
| Working stroke of telescopic legs, mm | up to 400 |
| Height of the safety railings, mm | 180 |
| Number of folding bridges, pcs | 2 |
| Material | S235 |
| Driving surface | zinc-coated anti-skid grating / lentil sheeting / other |
| Components | Rubber wheel chocks – 2 pcs; Tow pole – 1 pc; Set of chains on the ramp – 7 pcs; Manual hydraulic pump with handle – 1 pc. |
| Warranty | 18 months |
Another advantage of a mobile ramp with telescopic legs adjustable in height is ease of transport. Thanks to its wheelbase, it can be easily moved around the warehouse or production area, setting it up exactly where loading or unloading is required. This is especially important for businesses where work areas change frequently or where multiple goods receiving points are used.
Additional options for mobile loading ramps
OPT-HR – additional protective hand railings, 1100 mm height, mountable.
OPT-TC – tent over the ramp roadway, mountable.
OPT-DL – built-in leveling platform, instead of a bridge FxD.

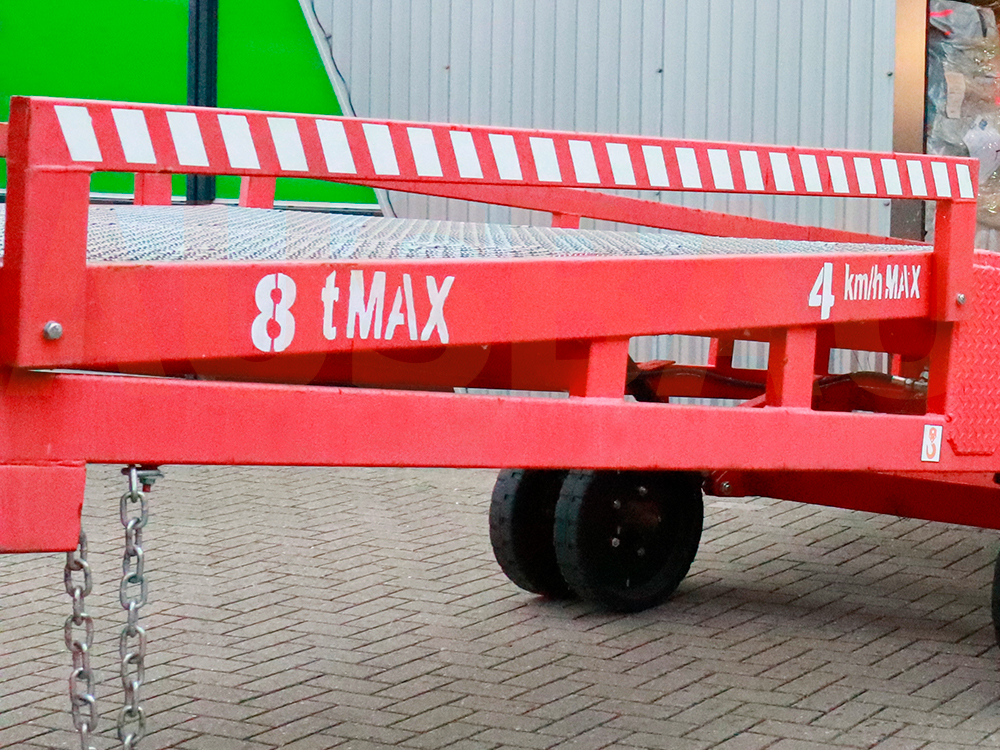

OPT-MPF – Mountable safety railings: Allow for an increased useful width of the ramp when needed.
OPT-BR – hydraulicl folding bridge.
OPT-CLR – different color (standard color is red).
